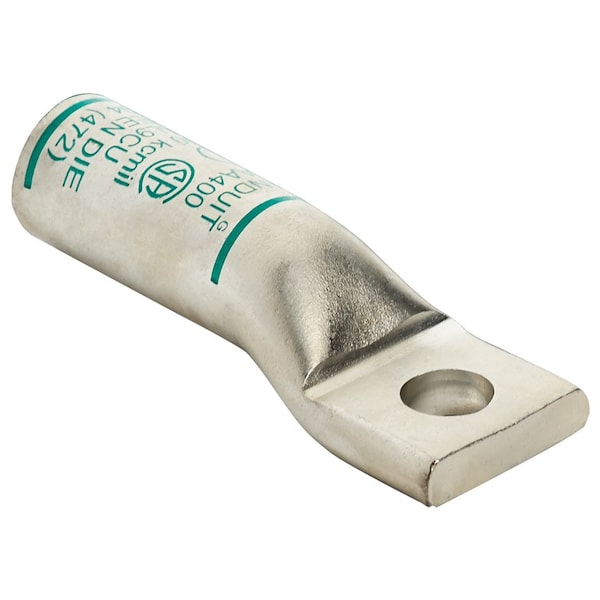

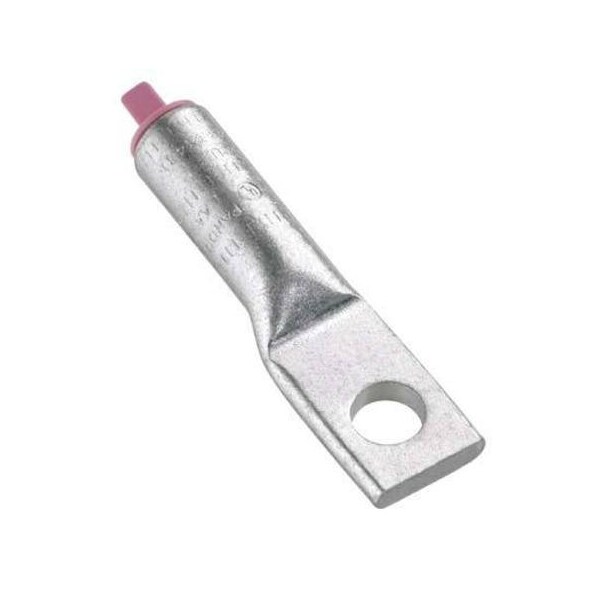

Terminal de compresión de aluminio, con 1 agujero, calibre 1/0 AW.
| Length | 2.1 in |
|---|---|
| Color Code | Tan |
| Overall Length | 3.23 in |
| Includes | Connector barrel pre-filled with oxide inhibiting joint compound |
| Features | Corrosion Resistant |
| Maximum Voltage (kV) | 35 |
| Finish/Coating | Tin-Plated |
| Tongue Width (mm) | 22.4 |
| Wire Strip Length (In.) | 1.56 |
| UL Temperature Rating (°C) | 90 |
| Overall Length (In.) | 3.23 |
| Base Material | Aluminum |
| Tongue Width (In.) | 0.88 |
| Copper Code Conductor Size (AWG) | 36,526 |
| Panduit Die Index Number | P50 |
| Stud Hole Size (mm) | 7.9 |
| Tongue Type | Standard |
| Overall Length (mm) | 82 |
| Tongue Thickness (In.) | 0.25 |
| Wire Strip Length (mm) | 39.7 |
| Tongue Angle | Straight |
| Burndy Die Index Number | 296 |
| Aluminum Conductor Size (AWG) | 36,526 |
| Barrel Length (In.) | 1.3 |
| Tongue Thickness (mm) | 6.4 |
| Stud Hole Size (In.) | 45,062 |
| Maximum Copper Conductor Size (AWG) | 36,526 |
| Product Type | Aluminum Compression Lugs |
| Product Name | Terminal Connector |
| Product Material | Aluminum |
| Connector Details | 1 x Terminal |
| Connector Plating | Tin |
| Product Class | Wire Termination |
| Package Quantity | 1 |
