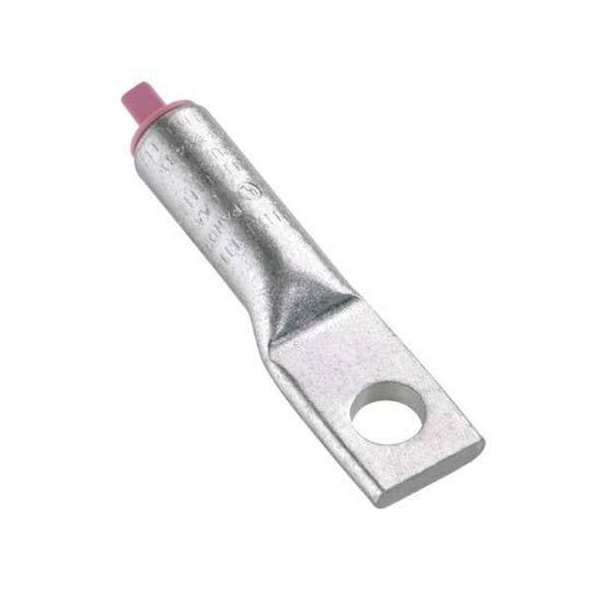

Conector de compresión de aluminio, con 1 agujero, 350 kc.
| Length | 2.8 in |
|---|---|
| Color Code | Brown |
| Includes | Connector barrel pre-filled with oxide inhibiting joint compound |
| Overall Length | 4.3 in |
| Features | Corrosion Resistant |
| UL Temperature Rating (°C) | 90 |
| Burndy Die Index Number | 299 |
| Maximum Voltage (kV) | 35 |
| Tongue Thickness (In.) | 0.38 |
| Finish/Coating | Tin-Plated |
| Base Material | Aluminum |
| Overall Length (mm) | 109.2 |
| Product Type | Aluminum Compression Lugs |
| Tongue Angle | Straight |
| Tongue Width (mm) | 38.1 |
| Tongue Type | Standard |
| Aluminum Conductor Size (kcmil) | 350 |
| Wire Strip Length (mm) | 58.7 |
| Barrel Length (In.) | 2-1/4 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Size (In.) | 1 to 2 |
| Panduit Die Index Number | P87 |
| Overall Length (In.) | 4.3 |
| Wire Strip Length (In.) | 2.31 |
| Copper Code Conductor Size (kcmil) | 350 |
| Tongue Thickness (mm) | 9.7 |
| Tongue Width (In.) | 1-1/2 |
| Connector Details | 1 x Terminal |
| Product Material | Aluminum |
| Product Name | Terminal Connector |
| Connector Plating | Tin |
| Product Class | Lugs, Splices, Accessories, Split Bolts |
| Package Quantity | 1 |
