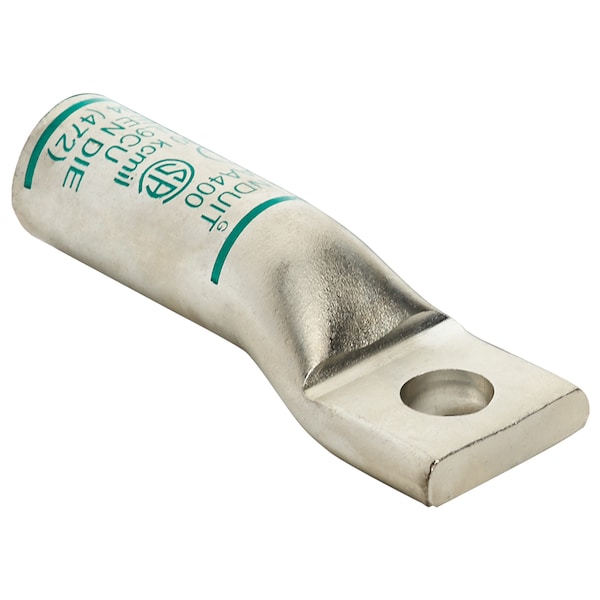

Terminal de compresión de aluminio, 1 agujero, 400 kc.
| Color Code | Green |
|---|---|
| Overall Length | 4.92 in |
| Overall Length (mm) | 125 |
| Wire Strip Length (mm) | 65.1 |
| Standards Met | CSA Certified, UL listed 486A-486B File #E52164 |
| Base Material | Aluminum |
| Tongue Width (mm) | 41 |
| Tongue Type | Standard |
| Stud Hole Size (In.) | 45,054 |
| Tongue Thickness (mm) | 10.4 |
| Barrel Length (mm) | 63.5 |
| Maximum Voltage (kV) | 35 |
| Copper Code Conductor Size (kcmil) | 400 |
| Tongue Width (In.) | 1.61 |
| T & B Die Index Number | 94 |
| Aluminum Conductor Size (kcmil) | 400 |
| Barrel Length (In.) | 2-1/2 |
| Burndy Die Index Number | 472 |
| Overall Length (In.) | 4.92 |
| Tongue Thickness (In.) | 0.41 |
| Stud Hole Size (mm) | 15.9 |
| Finish/Coating | Tin-Plated |
| Tongue Angle | Straight |
| Barrel Type | Standard Barrel, Barrel with Inspection Window |
| UL Temperature Rating (°C) | 90 |
| Wire Strip Length (In.) | 2.56 |
| Product Type | Aluminum Compression Lugs |
| Panduit Die Index Number | P94 |
| Lug Type | 1 Stud Hole Lug |
| Product Class | Wire Termination |
| Package Quantity | 1 |
