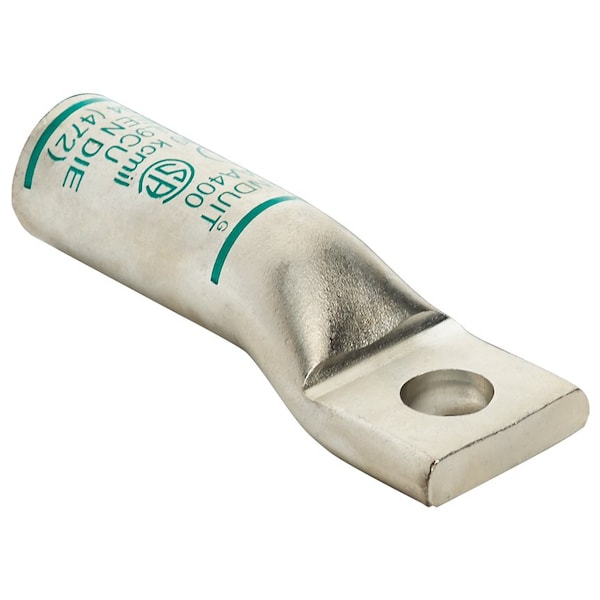

Terminal de compresión de aluminio, 1 agujero, 500 Kc.
| Material | Aluminum |
|---|---|
| Color Code | Pink |
| Hole Center to Center | 44563 |
| Barrel Length | 3 |
| Tool Type | Lug |
| Standards | cULus. UL/CSA |
| Outside Dia. | 1.32 |
| Overall Length | 5-1/2 in |
| Wire Strip Length (mm) | 26.92 |
| Stud Hole Size (In.) | 1 to 2 |
| Burndy Die Index Number | 300 |
| Outer Diameter (In.) | 1.32 |
| Stud Hole Size (mm) | 12.7 |
| CSA Temperature Rating (°C) | 90 |
| Inside Diameter (In.) | 0.84 |
| Tongue Width (mm) | 44.19 |
| UL Temperature Rating (°C) | 90 |
| Tongue Thickness (mm) | 11.43 |
| Inside Diameter (mm) | 21.33 |
| Standards Met | cULus. UL/CSA |
| Aluminum Conductor Size (kcmil) | 500 |
| Finish/Coating | Tin-Plated |
| Barrel Length (In.) | 3 |
| Base Material | Aluminum |
| Wire Strip Length (In.) | 3.0625 |
| Overall Length (mm) | 139.7 |
| Overall Length (In.) | 5-1/2 |
| Copper Code Conductor Size (kcmil) | 500 |
| Tongue Type | Standard |
| Tongue Thickness (In.) | 0.45 |
| Maximum Voltage (kV) | 35 |
| Tongue Width (In.) | 1.74 |
| Tongue Angle | Straight |
| Panduit Die Index Number | P99 |
| Product Type | Aluminum Compression Lugs |
| Barrel Length (mm) | 76.2 |
| Barrel Type | Standard Barrel |
| Outer Diameter (mm) | 33.52 |
| Product Class | Lugs, Splices, Accessories, Split Bolts |
| Package Quantity | 1 |
