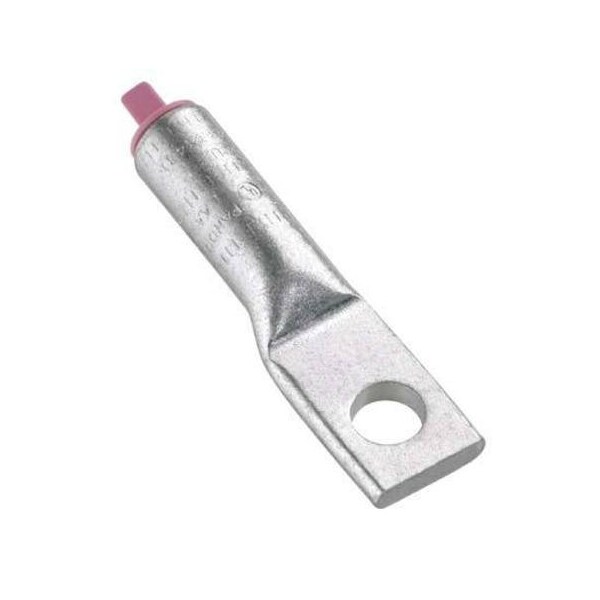

Terminal de compresión de aluminio, 1 orificio, 750 kc.
| Length | 2.1 in |
|---|---|
| Color Code | Red |
| Includes | Connector barrel pre-filled with oxide inhibiting joint compound |
| Overall Length | 6.55 in |
| Features | Corrosion Resistant |
| UL Temperature Rating (°C) | 90 |
| Panduit Die Index Number | P125 |
| Base Material | Aluminum |
| Tongue Thickness (mm) | 13.5 |
| Maximum Voltage (kV) | 35 |
| Finish/Coating | Tin-Plated |
| Tongue Width (mm) | 44.5 |
| Stud Hole Size (mm) | 15.9 |
| Tongue Angle | Straight |
| Wire Strip Length (mm) | 77.8 |
| Overall Length (In.) | 6.55 |
| Tongue Width (In.) | 1-3/4 |
| Stud Hole Size (In.) | 45,054 |
| Tongue Type | Standard |
| Copper Code Conductor Size (kcmil) | 750 |
| Barrel Length (In.) | 3.38 |
| Wire Strip Length (In.) | 3.44 |
| Product Type | Aluminum Compression Lugs |
| Aluminum Conductor Size (kcmil) | 750 |
| Burndy Die Index Number | 301 |
| Overall Length (mm) | 166.4 |
| Tongue Thickness (In.) | 0.53 |
| Product Material | Aluminum |
| Connector Details | 1 x Terminal |
| Connector Plating | Tin |
| Product Name | Terminal Connector |
| Product Class | Wire Termination |
| Package Quantity | 1 |
