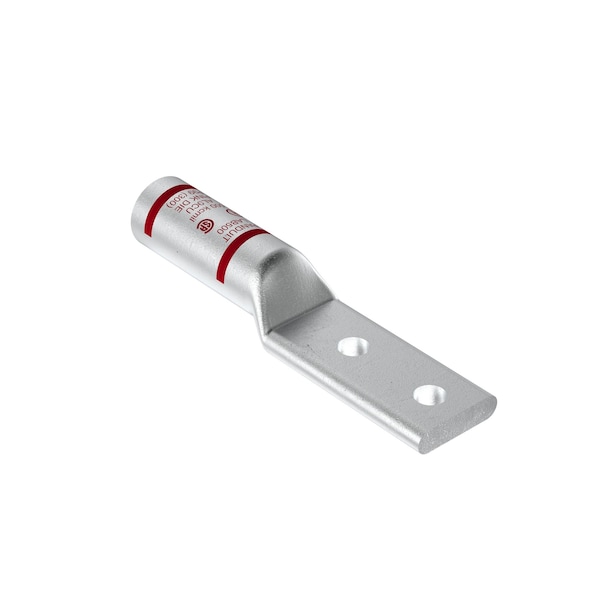

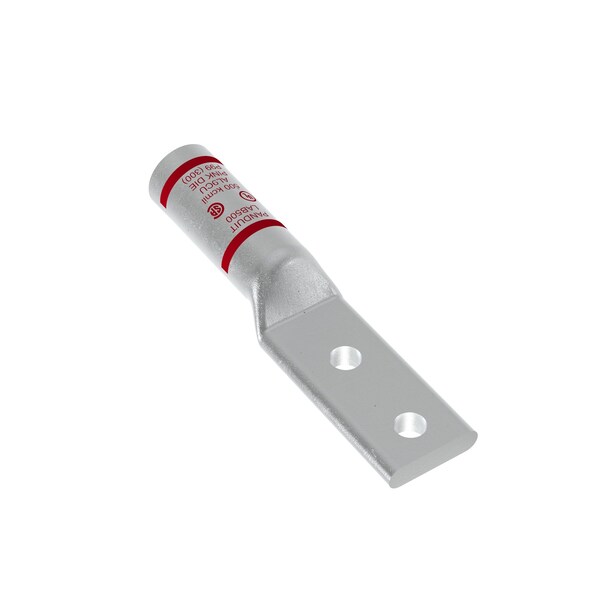

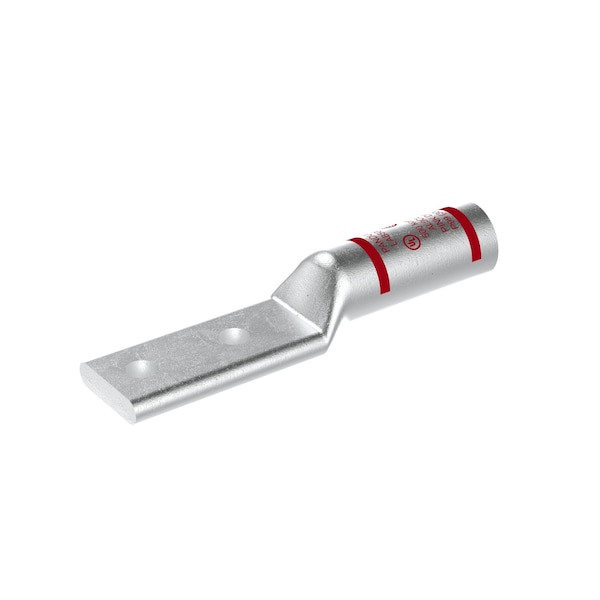

Terminal de compresión de aluminio, de 2 orificios, 1000 k_ampères.
| Length | 3.4 in |
|---|---|
| Color Code | Brown |
| Overall Length | 9.67 in |
| Includes | Connector barrel pre-filled with oxide inhibiting joint compound |
| Features | Corrosion Resistant |
| Tongue Type | Standard |
| Maximum Voltage (kV) | 35 |
| Stud Hole Size (In.) | 1 to 2 |
| Panduit Die Index Number | P161 |
| Copper Code Conductor Size (kcmil) | 1 |
| Aluminum Conductor Size (kcmil) | 1 |
| Wire Strip Length (In.) | 4.75 |
| Tongue Width (In.) | 2.56 |
| Tongue Angle | Straight |
| UL Temperature Rating (°C) | 90 |
| Stud Hole Spacing (In.) | 1.75 |
| Tongue Width (mm) | 65 |
| Stud Hole Spacing (mm) | 44.5 |
| Stud Hole Size (mm) | 12.7 |
| Wire Strip Length (mm) | 120.7 |
| Finish/Coating | Tin-Plated |
| Tongue Thickness (mm) | 16 |
| Tongue Thickness (In.) | 0.63 |
| Overall Length (In.) | 9.67 |
| Burndy Die Index Number | 302 |
| Base Material | Aluminum |
| Barrel Length (In.) | 4.67 |
| Product Type | Compression Connectors - Lugs |
| Overall Length (mm) | 245.6 |
| Product Name | Terminal Connector |
| Product Material | Aluminum |
| Connector Details | 1 x Terminal |
| Connector Plating | Tin |
| Product Class | Wire Termination |
| Package Quantity | 1 |
