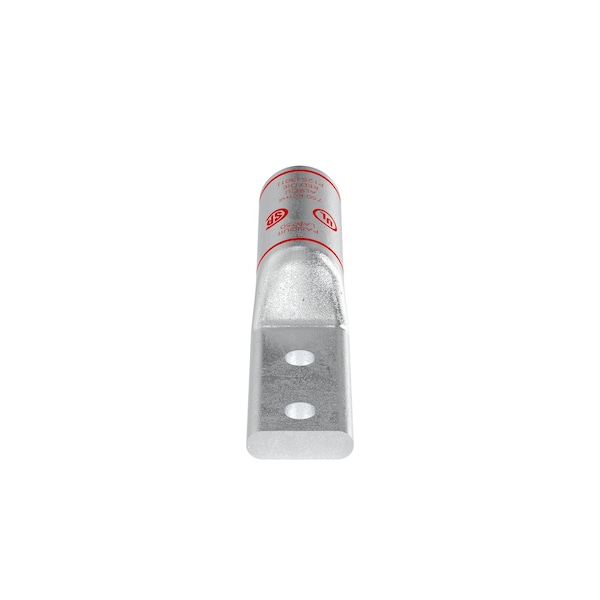

Terminal de compresión de aluminio, 2 orificios, 750 Kc (paquete de 20).
| Material | Aluminum |
|---|---|
| Color Code | Red |
| Standards | UL/CSA |
| Overall Length | 8-1/4 in |
| Tool Type | Lug |
| Hole Center to Center | 44563 |
| Outside Dia. | 1.59 |
| Stud Hole Size (mm) | 12.7 |
| Barrel Type | Standard Barrel |
| Product Type | Aluminum Compression Lugs |
| Maximum Voltage (kV) | 35 |
| Barrel Length (mm) | 87.37 |
| Aluminum Conductor Size (kcmil) | 750 |
| Outer Diameter (In.) | 1.59 |
| Tongue Angle | Straight |
| Overall Length (mm) | 209.55 |
| UL Temperature Rating (°C) | 90 |
| Tongue Thickness (mm) | 13.71 |
| Base Material | Aluminum |
| Barrel Length (In.) | 3.44 |
| Tongue Width (In.) | 1.74 |
| Wire Strip Length (In.) | 3.4375 |
| Stud Hole Spacing (mm) | 44.45 |
| Stud Hole Spacing (In.) | 1.75 |
| Burndy Die Index Number | 301 |
| Tongue Thickness (In.) | 0.54 |
| Tongue Type | Standard |
| Finish/Coating | Tin-Plated |
| Copper Code Conductor Size (kcmil) | 750 |
| CSA Temperature Rating (°C) | 90 |
| Inside Diameter (In.) | 1.03 |
| Wire Strip Length (mm) | 87.31 |
| Panduit Die Index Number | P125 |
| Outer Diameter (mm) | 40.38 |
| Overall Length (In.) | 8-1/4 |
| Inside Diameter (mm) | 26.16 |
| Tongue Width (mm) | 44.19 |
| Stud Hole Size (In.) | 1 to 2 |
| Standards Met | UL/CSA |
| Package Quantity | 20 |
