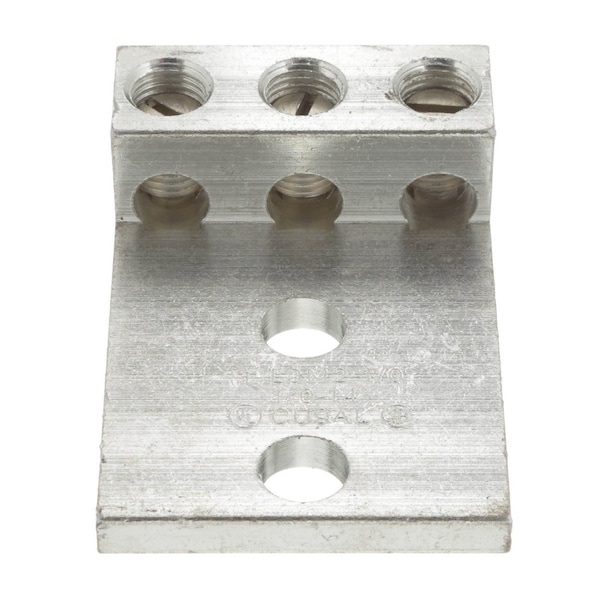

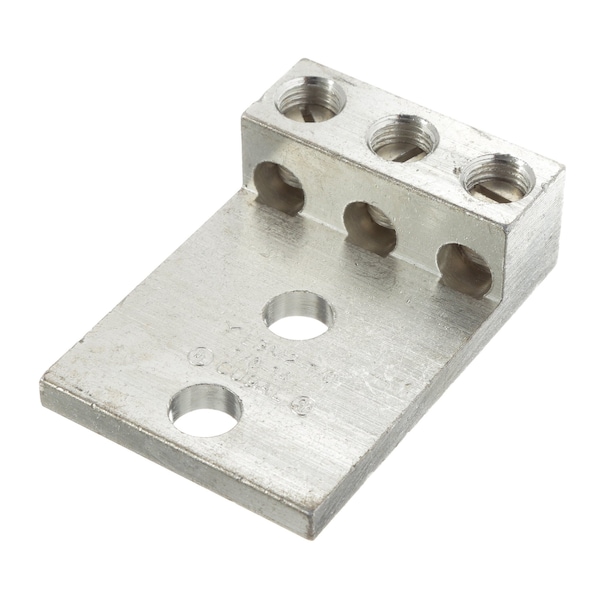

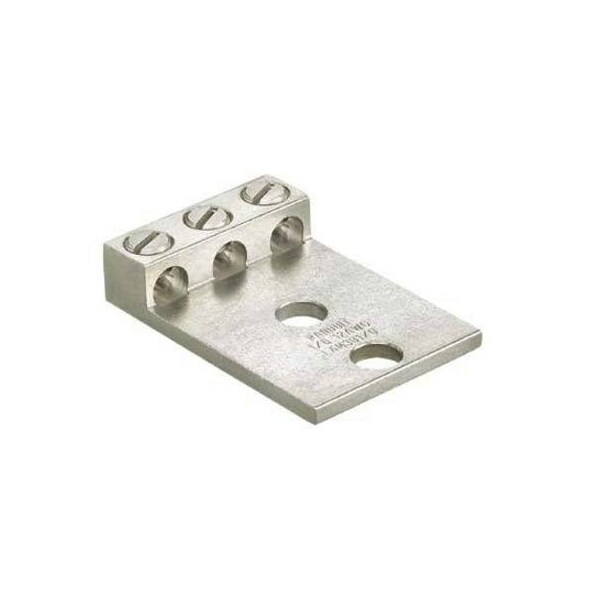

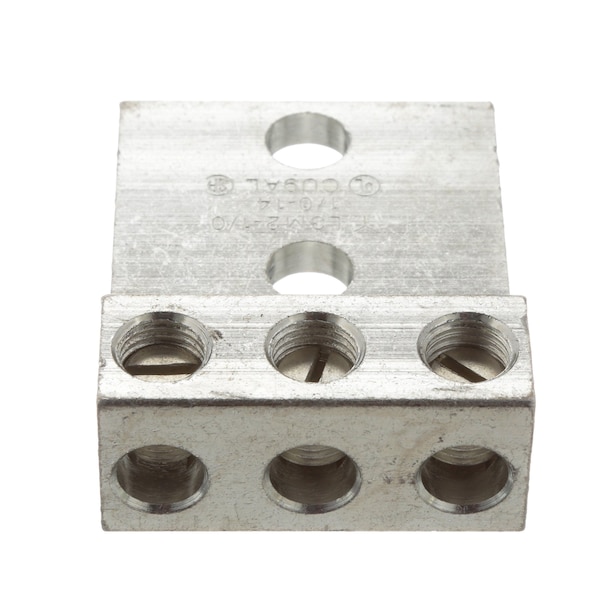

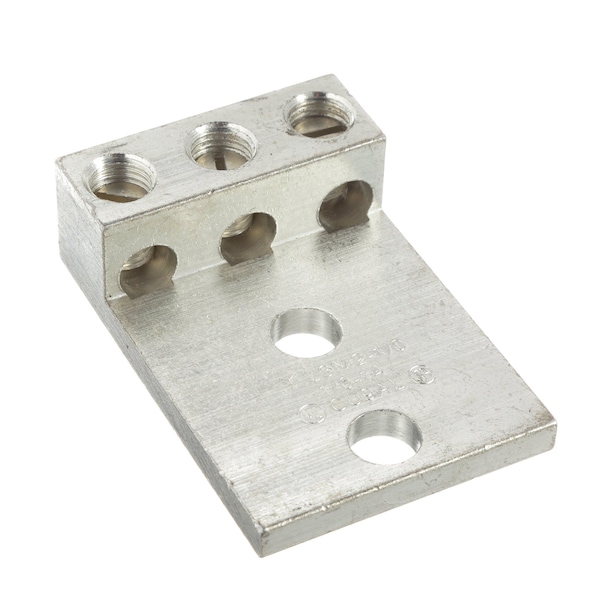

Terminal mecánica de aluminio, de 2 orificios y 3 barras.
| Height | 1/2 in |
|---|---|
| Overall Length | 2.49 in |
| UL Temperature Rating (°C) | 90 |
| Overall Height (mm) | 11.9 |
| Tongue Width (In.) | 1.63 |
| Product Type | Mechanical Connectors |
| Overall Length (In.) | 2.49 |
| Overall Length (mm) | 63.2 |
| Base Material | Aluminum |
| Stud Hole Size (In.) | 44,930 |
| Tongue Length (mm) | 51.6 |
| Stud Hole Spacing (In.) | 0.87 |
| Tongue Length (In.) | 2.03 |
| Tongue Type | Straight Tongue |
| Stud Hole Spacing (mm) | 22.1 |
| Overall Height (In.) | 1/2 |
| Standards Met | UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90°C |
| Tongue Width (mm) | 41.1 |
| Number of Holes | 2 |
| Tongue Thickness (In.) | 0.19 |
| Tongue Thickness (mm) | 4.8 |
| Finish/Coating | Tin-Plated |
| Maximum Voltage (V) | 600 |
| Connector Details | 1 x Barrel Plug |
| Connector Plating | Tin |
| Product Material | Copper, Aluminum |
| Product Name | Terminal Connector |
| Product Class | Lugs |
| Package Quantity | 1 |
