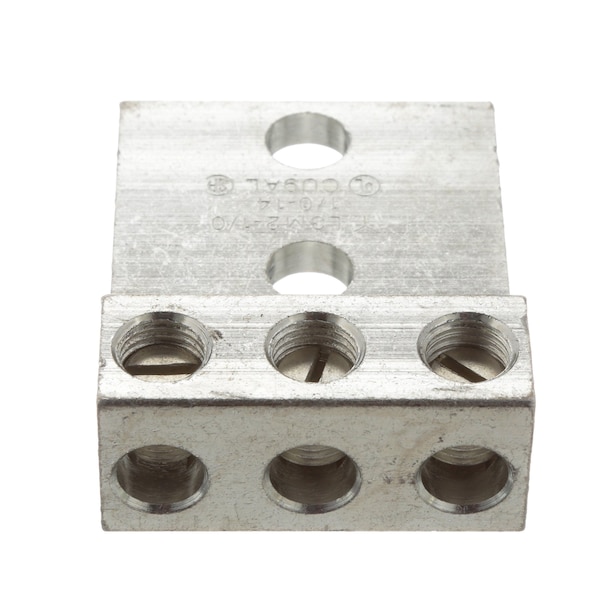

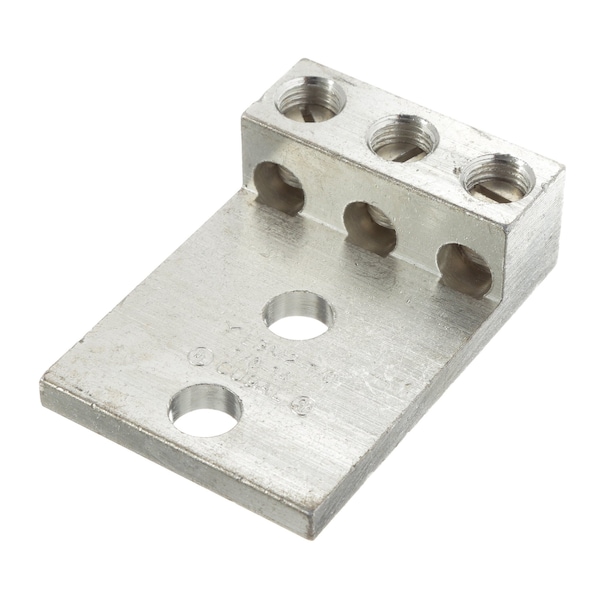

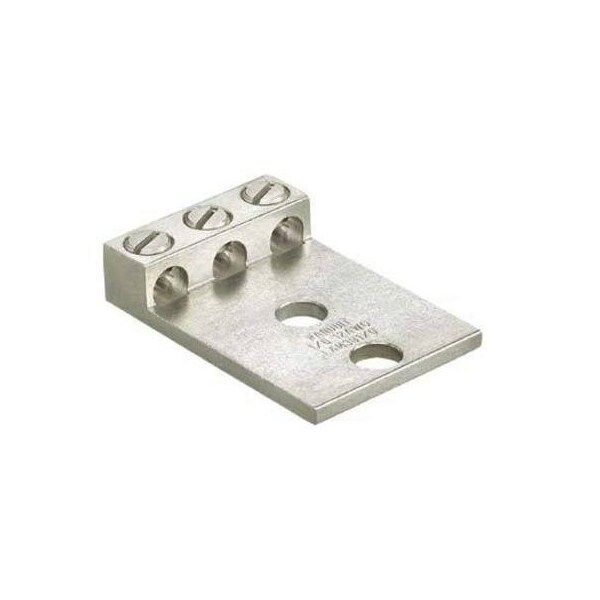

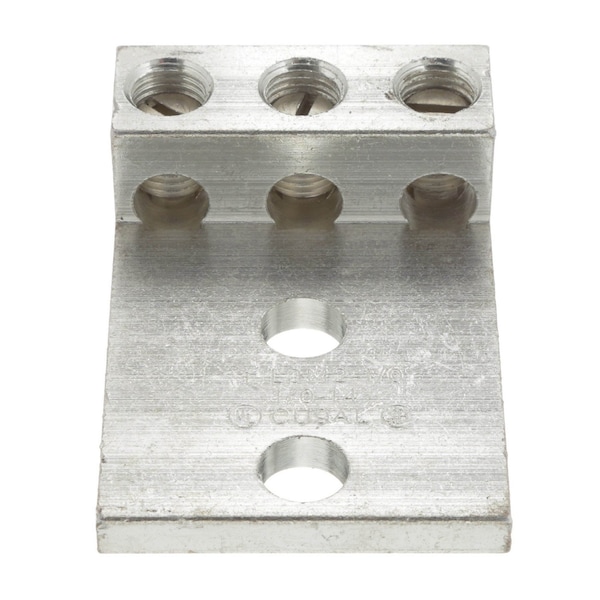

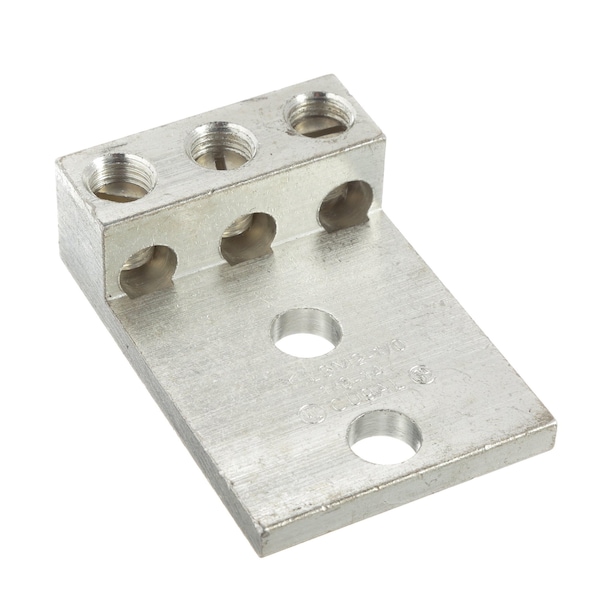

Terminal mecánica de aluminio, 2 agujeros, 3 barras.
| Height | 1.2 in |
|---|---|
| Overall Length | 4-1/4 in |
| Features | Halogen Free |
| Standards Met | UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90°C |
| Overall Height (mm) | 20.6 |
| Base Material | Aluminum |
| Maximum Voltage (V) | 600 |
| Tongue Width (mm) | 71.4 |
| Stud Hole Spacing (In.) | 1.75 |
| Tongue Length (In.) | 3.25 |
| Overall Length (In.) | 4-1/4 |
| Tongue Thickness (mm) | 7.9 |
| Tongue Width (In.) | 2.81 |
| Number of Holes | 2 |
| Tongue Length (mm) | 82.6 |
| Hex Size (mm) | 6.4 |
| Overall Length (mm) | 106.4 |
| Stud Hole Spacing (mm) | 45 |
| Product Type | Mechanical Connectors |
| Overall Height (In.) | 1.2 |
| Stud Hole Size (In.) | 1 to 2 |
| Finish/Coating | Tin-Plated |
| Tongue Type | Straight Tongue |
| Tongue Thickness (In.) | 0.31 |
| Product Name | Terminal Connector |
| Product Material | Copper, Aluminum |
| Connector Plating | Tin |
| Connector Details | 1 x Barrel Plug |
| Product Class | Wire Termination |
| Package Quantity | 1 |
