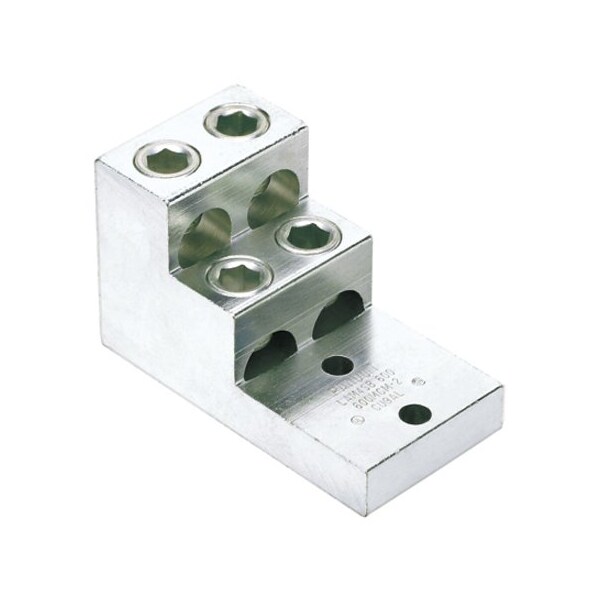

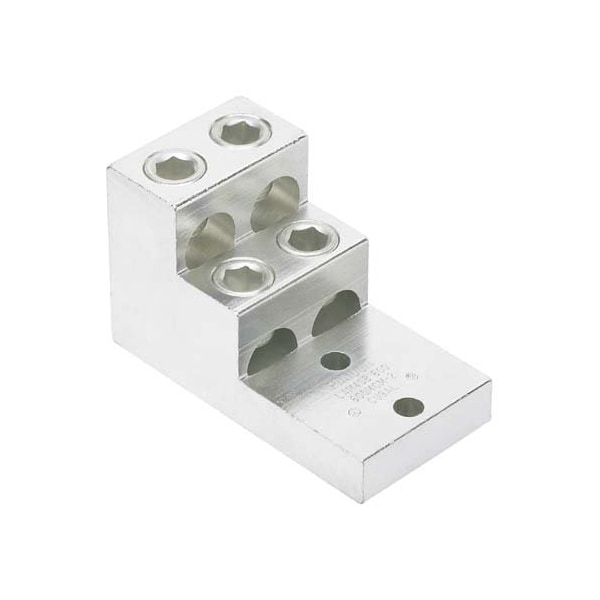

Conector mecánico de aluminio, 2 orificios, 4 barras.
| Height | 3 in |
|---|---|
| Overall Length | 4.91 in |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (V) | 600 |
| Hex Size (mm) | 9.5 |
| Overall Length (In.) | 4.91 |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 44,993 |
| Base Material | Aluminum |
| Overall Length (mm) | 124.7 |
| Stud Hole Spacing (mm) | 35.1 |
| Tongue Length (mm) | 59.4 |
| Overall Height (mm) | 76.2 |
| Stud Hole Spacing (In.) | 1.38 |
| Product Type | Mechanical Connectors |
| Tongue Thickness (In.) | 0.75 |
| Tongue Width (In.) | 2.84 |
| Tongue Type | Straight Tongue |
| Overall Height (In.) | 3 |
| Tongue Width (mm) | 66.8 |
| Tongue Length (In.) | 2.34 |
| Standards Met | UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90°C |
| Tongue Thickness (mm) | 19.1 |
| Number of Holes | 2 |
| Connector Details | 1 x Barrel Plug |
| Product Name | Terminal Connector |
| Connector Plating | Tin |
| Product Material | Copper, Aluminum |
| Product Class | Wire Termination |
| Package Quantity | 1 |
