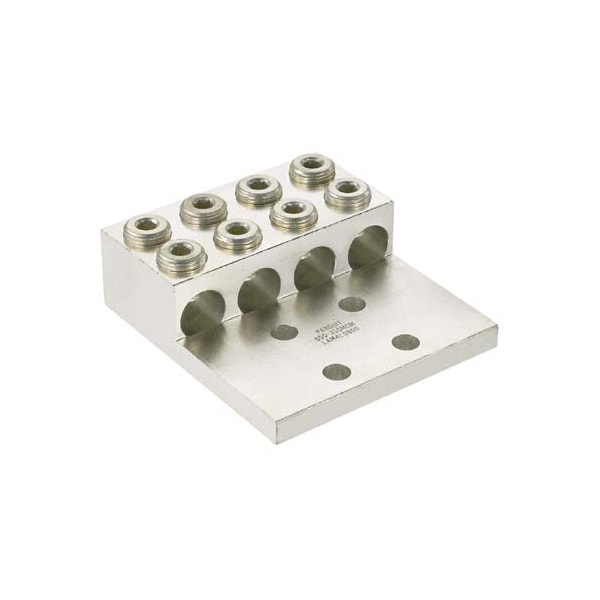

Conector mecánico de aluminio, 4 agujeros, 4 barras.
| Height | 1-1/2 in |
|---|---|
| Overall Length | 5-1/2 in |
| Overall Height (In.) | 1-1/2 |
| Standards Met | UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90°C |
| UL Temperature Rating (°C) | 90 |
| Stud Hole Spacing (In.) | 1.75 |
| Tongue Thickness (In.) | 0.38 |
| Stud Hole Spacing (mm) | 44.5 |
| Overall Length (mm) | 139.7 |
| Hex Size (mm) | 9.5 |
| Tongue Length (In.) | 3.25 |
| Product Type | Mechanical Connectors |
| Overall Height (mm) | 38.1 |
| Tongue Length (mm) | 82.5 |
| Stud Hole Size (In.) | 1 to 2 |
| Tongue Type | Straight Tongue |
| Base Material | Aluminum |
| Tongue Thickness (mm) | 9.7 |
| Maximum Voltage (V) | 600 |
| Tongue Width (In.) | 5.31 |
| Tongue Width (mm) | 134.9 |
| Finish/Coating | Tin-Plated |
| Overall Length (In.) | 5-1/2 |
| Product Class | Wire Termination |
| Package Quantity | 1 |
