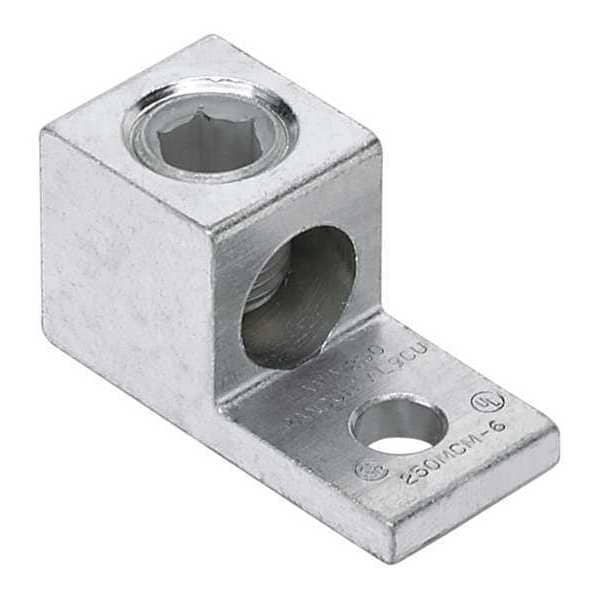

Terminal mecánico de aluminio, 600 V CA, paquete de 100.
| Connector Type | Straight Barrel |
|---|---|
| Material | Aluminum |
| Color Code | Not Applicable |
| Stud Size | 1/4 in |
| Item | Aluminum Mechanical Lug |
| For Wire Type | Stranded |
| For Wire Size | 14 to 2 AWG |
| Overall Length | 1.17 in |
| Hole Center to Center | Not Applicable |
| Tongue Thickness | 0.11 in |
| Tongue Angle | Straight |
| RoHS Compliant | No |
| Tongue Length | 0.7 in |
| Termination Style | Screw |
| Tongue Width | 1/2 in |
| For Conductor Material | Copper, Aluminum |
| Standards | CSA Certified, cULus, UL Listed |
| For Stud Size | 1/4 in |
| Die Code | Not Applicable |
| Overall Width | 1/2 in |
| Strip Length | 1/2 in |
| For Stranded Aluminum Wire Size - Maximum | 2 AWG |
| For Stranded Aluminum Wire Size - Minimum | 14 AWG |
| For Stranded Copper Wire Size - Maximum | 2 AWG |
| Special Features | Premium Performance |
| Maximum Voltage | 600 V AC |
| Contact Finish | Tin |
| For Stranded Copper Wire Size - Minimum | 14 AWG |
| Barrel Size | Not Applicable |
| Seam Style | Not Applicable |
| Inspection Hole | Not Applicable |
| Package Quantity | 100 |
