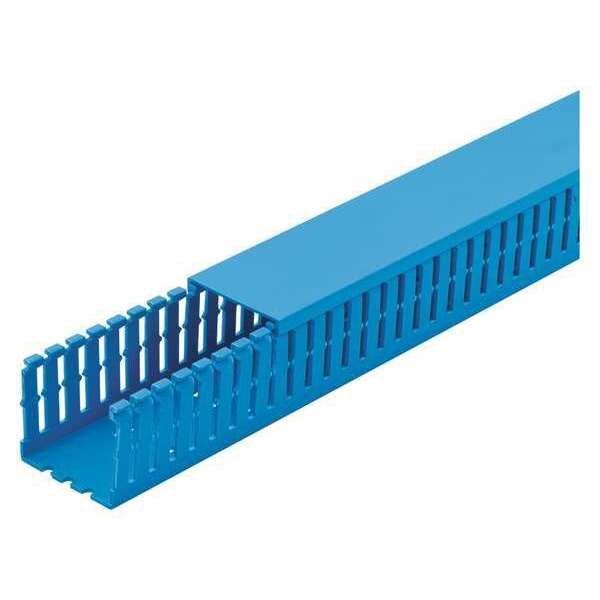

Base Wiring Duct, Type F, Narrow, Intrinsic Blue, 2" x 4" x 1' (6-Pack)
| Item | Base Wiring Duct, Type F, Narrow |
|---|---|
| Color | Blue |
| Material | PVC |
| Width | 2 in |
| Height | 4 in |
| Includes | Base Only |
| Application | Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications |
| Measurement System | Imperial |
| Overall Length (ft.) | 6 |
| Slot Width (In.) | 0.2 |
| Overall Length (m) | 1.8 |
| Overall Width (mm) | 57.2 |
| Overall Height (mm) | 104.1 |
| Wiring Duct Style | Narrow Slot Wiring Duct |
| Mount Method | Mounting Holes |
| Slot Width (mm) | 5 |
| Flammability Rating | UL94 V-0 |
| Product Type | Base Wiring Duct |
| Overall Width (In.) | 2-1/4 |
| Wiring Duct Type | F |
| Cover Part Number | C2IB6 |
| Overall Height (In.) | 4.1 |
| Product Class | Wire Routing, Management & Protection |
| Package Quantity | 6 |
