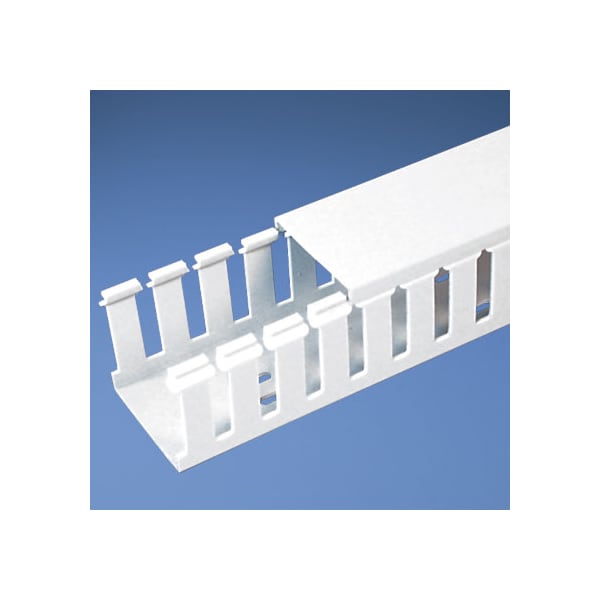

Base Wiring Duct, Type G, Wide Slot, White, 2" x 2" x 1' (6-Pack), Adhesive
| Color | White |
|---|---|
| Material | Lead-Free PVC |
| Width | 2-1/4 in |
| Height | 2.12 in |
| Includes | Base Only |
| Application | Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of applications |
| Wiring Duct Style | Wide Slot Wiring Duct |
| Overall Height (In.) | 2.12 |
| Cover Part Number | C2WH6 |
| Note | Adhesive tape is not meant for permanent mounting of wiring duct. One mounting hole on each end will be exposed for permanent mounting with fasteners. For best results, wiring duct should be applied to clean, dry, grease-free surfaces. We recommend the surface be cleaned prior to wiring duct installation |
| Overall Width (In.) | 2-1/4 |
| Mount Method | Mounting Holes with Adhesive |
| Overall Width (mm) | 57.2 |
| Slot Width (In.) | 0.31 |
| Product Type | Base Wiring Duct |
| Measurement System | Imperial |
| Overall Length (ft.) | 6 |
| Wiring Duct Type | G |
| Overall Length (m) | 1.8 |
| Slot Width (mm) | 7.9 |
| Overall Height (mm) | 53.8 |
| Flammability Rating | UL94 V-0 |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant |
| Sub Brand | Panduct® |
| Product Class | Wire Routing, Management & Protection |
| Package Quantity | 6 |
