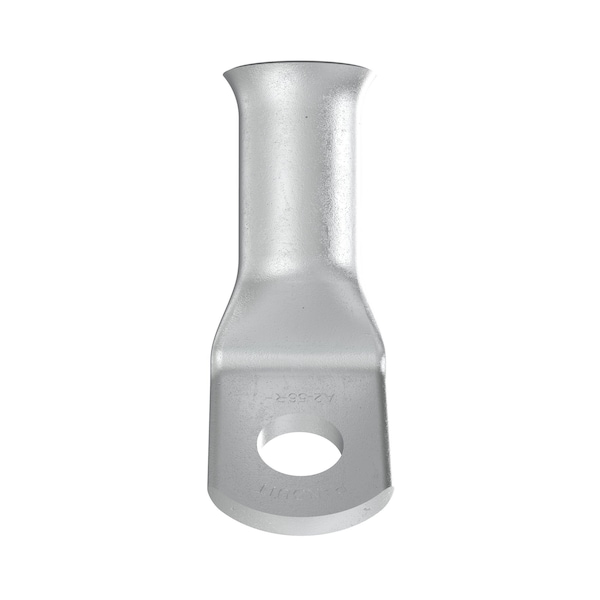

Terminal de cable de batería, calibre 2, perno de 5/16 pulgadas, curva de 45 grados (paquete de 100)
| Material | Copper |
|---|---|
| Tool Type | Lug |
| Outside Dia. | 0.42 |
| Overall Length | 1.78 in |
| Hole Center to Center | 0.31 |
| Standards | UL Listed for use in US and Canada to UL 486A-486B for power applications, meets US Military Wire Pull Out Specs |
| Tongue Angle | 45° |
| Wire Strip Length (mm) | 19.1 |
| Tongue Type | Round |
| Standards Met | UL Listed for use in US and Canada to UL 486A-486B for power applications, meets US Military Wire Pull Out Specs |
| Barrel Length (mm) | 18.8 |
| UL Temperature Rating (°C) | 90 |
| Stud Hole Size (In.) | 0.31 |
| Tongue Thickness (In.) | 0.1 |
| Barrel Type | Standard Barrel, No Window |
| Wire Strip Length (In.) | 0.75 |
| Lug Type | 1 Stud Hole Lug |
| Inside Diameter (mm) | 7.9 |
| Outer Diameter (In.) | 0.42 |
| Inside Diameter (In.) | 0.31 |
| Maximum Voltage (kV) | 35 |
| Tongue Width (mm) | 16.8 |
| Overall Length (In.) | 1.78 |
| Tongue Thickness (mm) | 2.5 |
| Overall Length (mm) | 45.2 |
| Class K Copper Flex Conductor Size (AWG) | 2 |
| Barrel Length (In.) | 0.74 |
| Stud Hole Size (mm) | 7.9 |
| Finish/Coating | Tin-Plating |
| Product Type | Copper Compression Lugs |
| Base Material | Copper |
| Outer Diameter (mm) | 10.7 |
| Tongue Width (In.) | 0.66 |
| Package Quantity | 100 |
