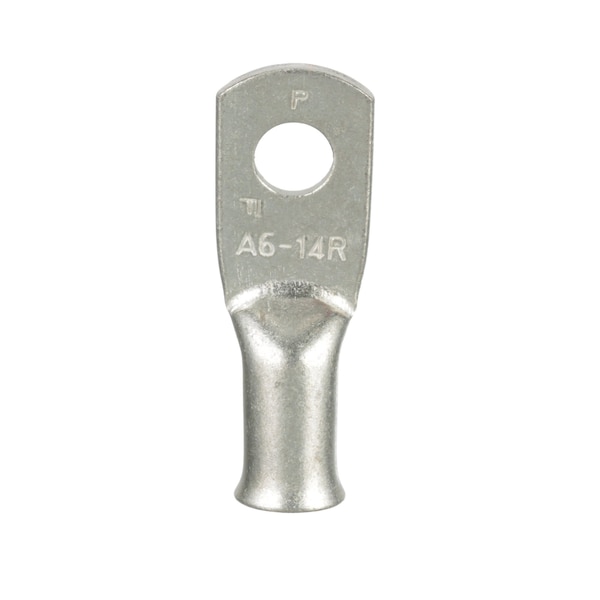

Terminal de cable de batería, calibre 6, perno de 1/4" (paquete de 100)
| Material | Copper |
|---|---|
| Color Code | Silver |
| Tongue Width - Wire Connector | 0.54 |
| Standards | UL Listed for use in US and Canada to UL 486A-486B for power applications, meets US Military Wire Pull Out Specs |
| Overall Length | 1.47 in |
| Tool Type | Lug |
| Barrel Length | 0.5 |
| Tongue Style | Round |
| Hole Center to Center | 44565 |
| Finish | Tin-Plating Meets ASTM B545-97, Class C 320µ-in |
| Tongue Type | Round |
| Maximum Voltage (kV) | 35 |
| Tongue Angle | Straight |
| Finish/Coating | Tin-Plating |
| Panduit Die Index Number | 6 |
| Barrel Length (In.) | 1/2 |
| Base Material | Copper |
| Class K Copper Flex Conductor Size (AWG) | 6 |
| Tongue Width (mm) | 13.716 |
| Stud Hole Size (mm) | 6.35 |
| Barrel Length (mm) | 12.7 |
| UL Temperature Rating (°C) | 90 |
| Stud Hole Size (In.) | 44,930 |
| Tongue Thickness (mm) | 1.778 |
| Standards Met | UL Listed for use in US and Canada to UL 486A-486B for power applications, meets US Military Wire Pull Out Specs |
| Overall Length (In.) | 1.47 |
| Tongue Thickness (In.) | 0.07 |
| Overall Length (mm) | 37.338 |
| Lug Type | 1 Stud Hole Lug |
| Tongue Width (In.) | 0.54 |
| Barrel Type | Standard Barrel, No Window |
| Product Type | Compression Connectors - Lugs |
| Product Class | Wire Termination |
| Package Quantity | 100 |
