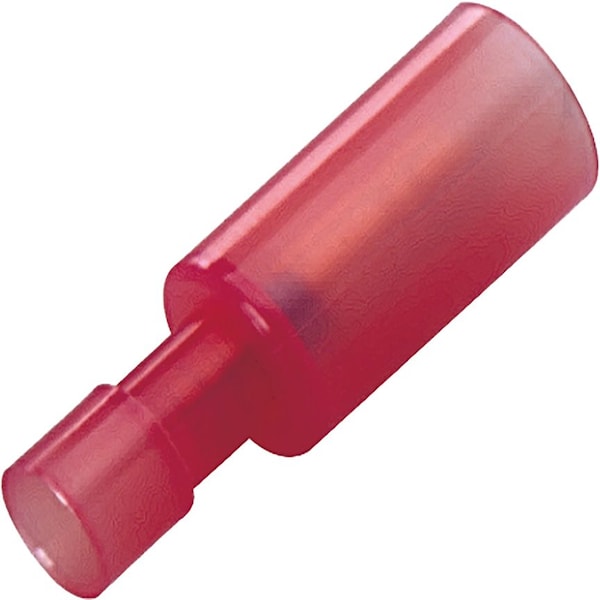

Bullet Disconnect, Male, PK25
| Wire Range | 22 to 16 AWG |
|---|---|
| Insulation Type | Nylon |
| Insulation Color | Red |
| Item | Bullet Disconnect,Male,PK25 |
| Connection Material | Brass |
| Overall Length | 1.06 in |
| Terminal Type | Male Bullet |
| Max. Temp. | 185 deg F |
| Standards | cULus, E466810 |
| Max. Voltage | 600 V |
| Features | Funnel Entry |
| Seam | Butted |
| Finish | Tin-Plated |
| Width | 0.16 in |
| Insulation Dia | 0.15 in |
| Product Class | Wire Termination |
| Max Operating Temperature | 85 degrees Celsius |
| Color Coding | Red |
| Package Quantity | 25 |
