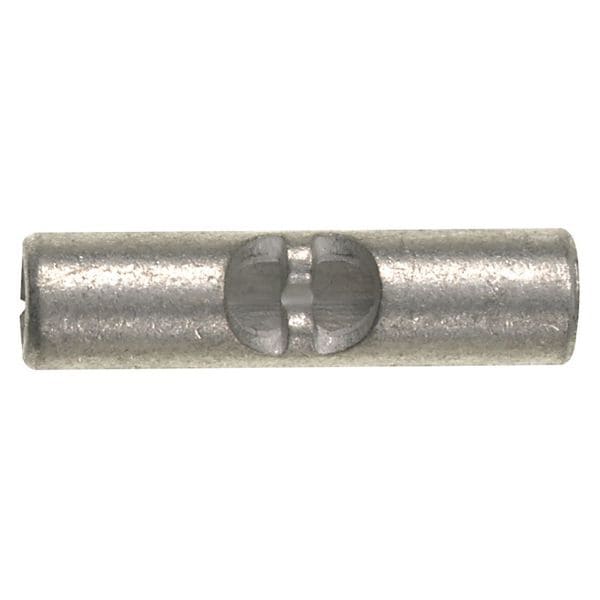

Butt Splice Connector, 12 to 10 AWG, PK500
| Item | Splice Connector |
|---|---|
| Wire Range | 12 to 10 AWG |
| Insulation Type | Non-Insulated |
| Seam | Brazed |
| Connection Type | Crimp |
| Insulation Color | Bare |
| Max. Voltage | 2,000 V |
| Overall Length | 0.63 in |
| Max. Temp. | 302 deg F |
| Standards | CSA C22.2 No. 65, UL 486C |
| Connector Type | Butt Splice |
| Connection Material | Tin Plated Copper |
| Barrel Inside Dia. | 0.14 in |
| Body Finish | Tin Plated |
| Barrel Inside Diameter | 0.14 in |
| Body Material | Copper |
| Overall Width | 0.22 in |
| Maximum Operating Temperature | 302 deg F |
| Minimum Wire Size | 12 AWG |
| Contact Material | Copper |
| Number of Splices | 2 |
| Termination Style | Crimp |
| Insulation Material | None |
| Maximum Voltage | 2,000 V |
| Seam Style | Brazed |
| Maximum Wire Size | 10 AWG |
| For Wire Type | Stranded |
| Strip Length | 5/16 in |
| Contact Finish | Tin |
| Barrel Outside Diameter | 0.22 in |
| Special Features | Internal Wire Stop Assures Proper Length of Insertion into Terminal Barrel |
| Package Quantity | 500 |
