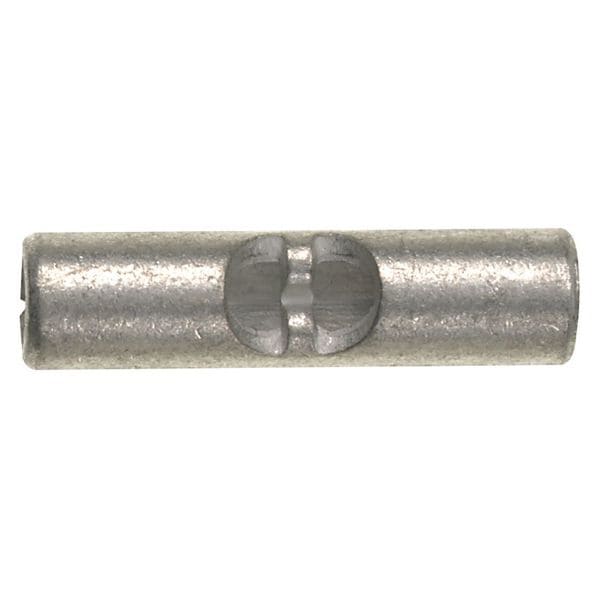

Conector de empalme de extremo, calibre 16 a 14 AWG, paquete de 100.
| Item | Splice Connector |
|---|---|
| Wire Range | 16 to 14 AWG |
| Insulation Type | Non-Insulated |
| Seam | Brazed |
| Connection Type | Crimp |
| Insulation Color | Bare |
| Color Code | Copper |
| Max. Voltage | 2,000 V |
| Overall Length | 0.62 in |
| Max. Temp. | 302 deg F |
| Connector Type | Butt Splice |
| Barrel Inside Dia. | 0.096 in |
| Standards | CSA C22.2 No. 65, UL 486C |
| Connection Material | Tin Plated Copper |
| Maximum Voltage | 2,000 V |
| Body Finish | Tin Plated |
| Contact Finish | Tin |
| Contact Material | Copper |
| Body Material | Copper |
| Barrel Outside Diameter | 0.16 in |
| Seam Style | Brazed |
| Special Features | Internal Wire Stop Assures Proper Length of Insertion into Terminal Barrel |
| Barrel Inside Diameter | 0.096 in |
| Maximum Operating Temperature | 302 deg F |
| Termination Style | Crimp |
| Maximum Wire Size | 14 AWG |
| For Wire Type | Stranded |
| Strip Length | 1/4 in |
| Compatible Installation Tool Model Number | CT-100A, CT-1570, CT-200, CT-2500, CT-600-A |
| Number of Splices | 2 |
| Insulation Material | None |
| Overall Width | 0.16 in |
| Minimum Wire Size | 16 AWG |
| Barrel Type | Standard |
| Overall Width (In.) | 0.16 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Finish/Coating | Tin-Plated |
| UL Temperature Rating (°C) | 105 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Maximum Voltage (V) | 2 |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Wire Strip Length (In.) | 0.2812 |
| Overall Length (In.) | 0.62 |
| Product Type | Butt Splice |
| Standards Met | UL 486C, CSA C22.2 No.65 |
| Copper Conductor Size (AWG) | #16 - #14 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Base Material | Copper |
| CSA Temperature Rating (°C) | 150 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Overall Length (mm) | 15.7 |
| UL Temperature Rating (°F) | 302 |
| CSA Temperature Rating (°F) | 302 |
| Sub Brand | Pan-Term® |
| Overall Width (mm) | 4.1 |
| Wire Strip Length (mm) | 7.1 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| UL Temperature Rating (°C) | 105 |
| CSA Temperature Rating (°F) | 302 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| CSA Temperature Rating (°C) | 150 |
| UL Temperature Rating (°F) | 302 |
| Package Quantity | 100 |
