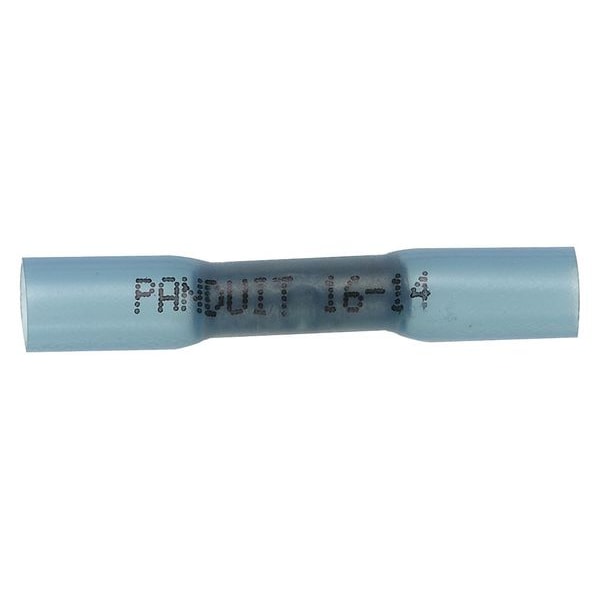

Conector de empalme de tope, calibre 16 a 14 AWG, paquete de 25.
| Item | Splice Connector |
|---|---|
| Wire Range | 16 to 14 AWG |
| Insulation Type | Heat Shrink |
| Seam | Seamless |
| Connection Type | Crimp |
| Insulation Color | Blue |
| Color Code | Blue |
| Max. Voltage | 600 V |
| Overall Length | 1.45 in |
| Max. Temp. | 230 deg F |
| Connector Type | Butt Splice |
| Standards | CSA C22.2 No. 65, UL 486C |
| Connection Material | Tin Plated Copper |
| Barrel Inside Dia. | 0.19 in |
| Insulation Material | Polyolefin |
| For Wire Type | Stranded |
| Minimum Operating Temperature | -65 deg F |
| Maximum Wire Size | 14 AWG |
| Number of Splices | 2 |
| Minimum Wire Size | 16 AWG |
| Body Material | Copper |
| Special Features | Heat Shrink Polyolefin Sleeve with Hot Melt Adhesive Protects Against Moisture |
| For Maximum Wire Insulation Diameter | 0.19 in |
| Strip Length | 5/16 in |
| Body Finish | Tin Plated |
| Termination Style | Crimp |
| Contact Finish | Tin |
| Maximum Voltage | 600 V |
| Maximum Operating Temperature | 257 deg F |
| Seam Style | Brazed |
| Barrel Inside Diameter | 0.19 in |
| Compatible Installation Tool Model Number | CT-310 |
| Contact Material | Copper |
| Product Type | Butt Splice |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Base Material | Copper |
| Wire Strip Length (In.) | 0.3125 |
| Copper Conductor Size (AWG) | #16 - #14 |
| Maximum Voltage (kV) | 0.6 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| CSA Temperature Rating (°C) | 125 |
| Finish/Coating | Tin-Plated |
| Standards Met | BSH14-Q |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Barrel Type | Standard |
| Maximum Voltage (V) | 600 |
| Overall Length (In.) | 1.45 |
| UL Temperature Rating (°C) | 125 |
| Product Line | Pan-Term |
| Environmentally Friendly | Yes |
| Product Name | Butt Splice |
| Product Model | BSH14-Q |
| Product Material | Polyolefin |
| Product Series | BSH |
| Product Color | Blue |
| Package Type | Bulk |
| UL Temperature Rating (°F) | 257 |
| Sub Brand | Pan-Term® |
| CSA Temperature Rating (°F) | 257 |
| Wire Strip Length (mm) | 7.9 |
| Overall Length (mm) | 36.8 |
| UL Temperature Rating (°F) | 257 |
| UL Temperature Rating (°C) | 125 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| CSA Temperature Rating (°C) | 125 |
| CSA Temperature Rating (°F) | 257 |
| Package Quantity | 25 |
