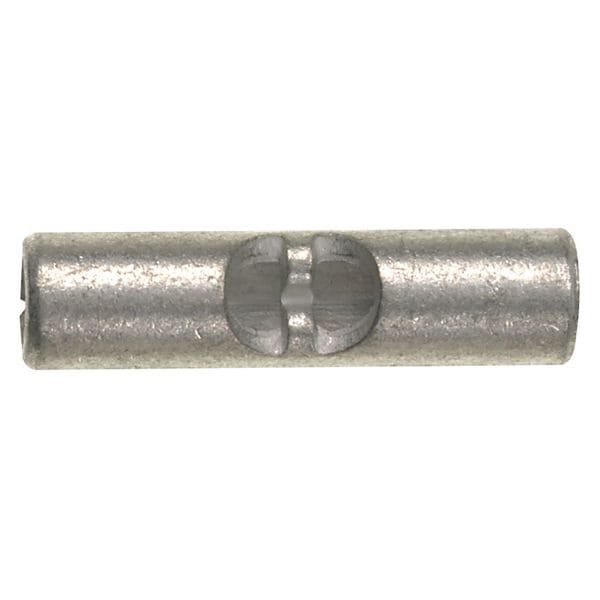

Butt Splice Connector, 16 to 14AWG, PK1000
| Item | Splice Connector |
|---|---|
| Wire Range | 16 to 14 AWG |
| Insulation Type | Non-Insulated |
| Seam | Brazed |
| Connection Type | Crimp |
| Insulation Color | Bare |
| Max. Voltage | 2,000 V |
| Overall Length | 0.62 in |
| Max. Temp. | 302 deg F |
| Connector Type | Butt Splice |
| Connection Material | Tin Plated Copper |
| Standards | CSA C22.2 No. 65, UL 486C |
| Barrel Inside Dia. | 0.096 in |
| Barrel Outside Diameter | 0.16 in |
| Insulation Material | None |
| Maximum Wire Size | 14 AWG |
| Overall Width | 0.16 in |
| Contact Material | Copper |
| Maximum Operating Temperature | 302 deg F |
| Minimum Wire Size | 16 AWG |
| Contact Finish | Tin |
| Body Material | Copper |
| Strip Length | 1/4 in |
| Seam Style | Brazed |
| Special Features | Internal Wire Stop Assures Proper Length of Insertion into Terminal Barrel |
| For Wire Type | Stranded |
| Body Finish | Tin Plated |
| Number of Splices | 2 |
| Barrel Inside Diameter | 0.096 in |
| Maximum Voltage | 2,000 V |
| Termination Style | Crimp |
| Package Quantity | 1000 |
