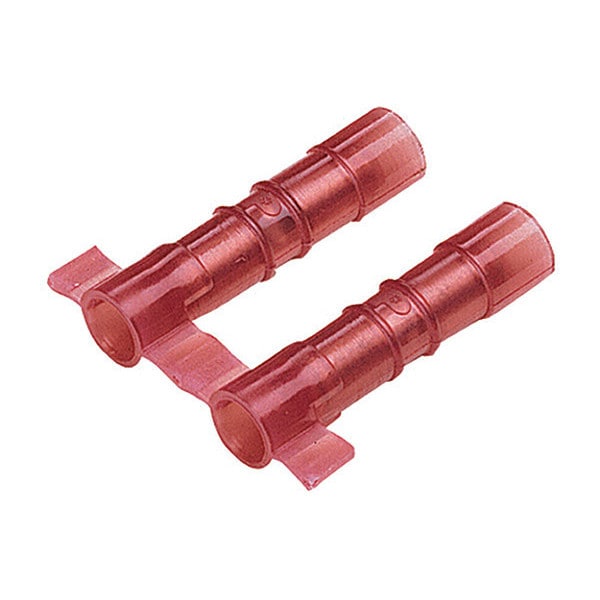

Butt Splice, Nyl Insul, 22-18 Awg, PK3000
| Item | Butt Splice,Nyl Insul,22-18 Awg,PK3000 |
|---|---|
| Color Code | Red |
| Overall Length | 0.95 in |
| Overall Length (In.) | 0.95 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Barrel Type | Funnel Entry |
| Maximum Voltage (kV) | 0.6 |
| Maximum Voltage (V) | 600 |
| UL Temperature Rating (°C) | 105 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| CSA Temperature Rating (°C) | 105 |
| Product Type | Butt Splice |
| Copper Conductor Size (AWG) | #22 - #16 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Insulation Material | Nylon |
| Standards Met | BSN18-3K |
| Overall Width (In.) | 0.22 |
| Maximum Copper Conductor Size (AWG SOL) | #18 |
| Maximum Copper Conductor Size (AWG STR) | #18 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Wire Strip Length (In.) | 0.3125 |
| Product Class | Splices |
| Width | 0.22 in |
| Package Quantity | 3000 |
