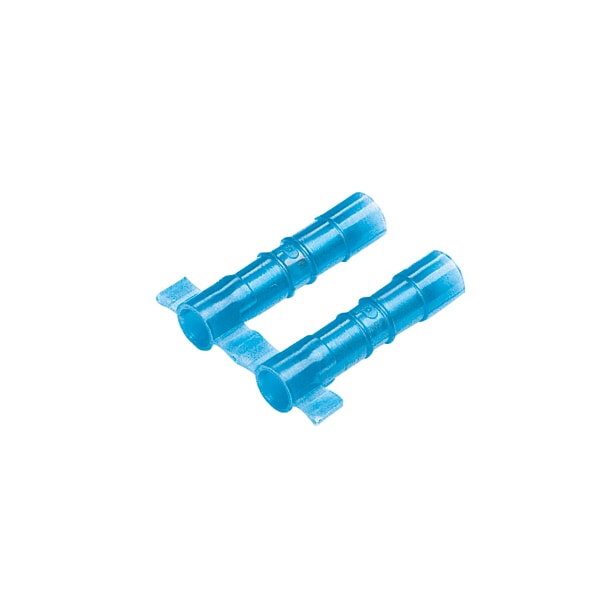

Butt Splice, nylon insulated, 18 - 14 AW
| Color Code | Blue |
|---|---|
| Overall Length | 0.95 in |
| Width | 0.2 in |
| Finish/Coating | Tin-Plated |
| Base Material | Copper |
| CSA Temperature Rating (°C) | 105 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Overall Length (In.) | 0.95 |
| Minimum Copper Conductor Size (AWG SOL) | #18 |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Overall Width (In.) | 0.24 |
| Maximum Voltage (kV) | 0.6 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Minimum Copper Conductor Size (AWG STR) | #18 |
| Product Type | Butt Splice |
| Copper Conductor Size (AWG) | #18 - #14 |
| UL Temperature Rating (°C) | 105 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Insulation Material | Nylon |
| Maximum Voltage (V) | 600 |
| Barrel Type | Funnel Entry |
| Wire Strip Length (In.) | 0.3125 |
| Standards Met | BSN14-3K |
| Product Line | Reel Smart |
| Product Material | Copper, Tin, Nylon |
| Product Color | Blue |
| Product Name | Butt Splice |
| Product Class | Splices |
| Package Quantity | 3000 |
