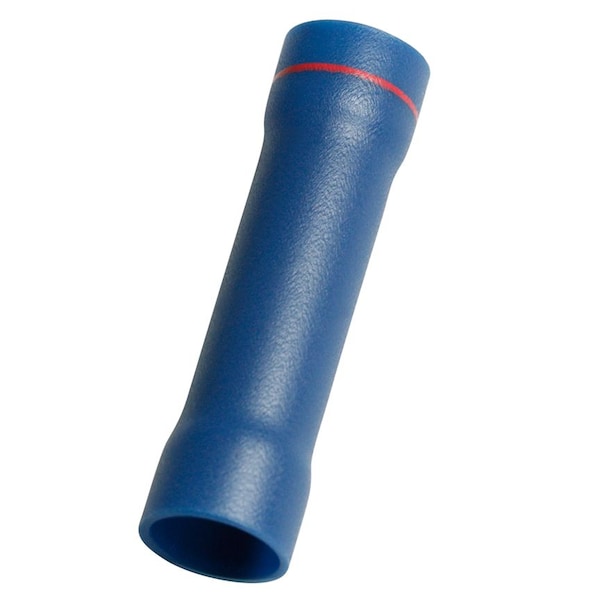

Butt Splice, Step-Down, Vyl, Insul, PK25
| Item | Butt Splice,Step-Down,Vyl,Insul,PK25 |
|---|---|
| Color Code | Blue |
| Overall Length | 1.77 in |
| Minimum Copper Conductor Size (AWG SOL) | #8 |
| Overall Length (In.) | 1.77 |
| Maximum Metric Conductor Size (mm²) | 14 |
| Minimum Copper Conductor Size (AWG) | #8 |
| CSA Temperature Rating (°C) | 75 |
| Barrel Type | Funnel Entry |
| Minimum Copper Conductor Size (AWG STR) | #8 |
| Insulation Material | Vinyl |
| Wire Strip Length (In.) | 0.47 |
| Maximum Copper Conductor Size (AWG SOL) | #6 |
| Copper Conductor Size (AWG) | #6, #8 |
| Maximum Copper Conductor Size (AWG) | #6 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Maximum Voltage (kV) | 0.6 |
| Maximum Voltage (V) | 600 |
| Standards Met | cULus |
| Maximum Copper Conductor Size (AWG STR) | #6 |
| Product Type | Butt Splice |
| Minimum Metric Conductor Size (mm²) | 8 |
| Barrel Length (In.) | 1.77 |
| Product Class | Wire Termination |
| Package Quantity | 25 |
