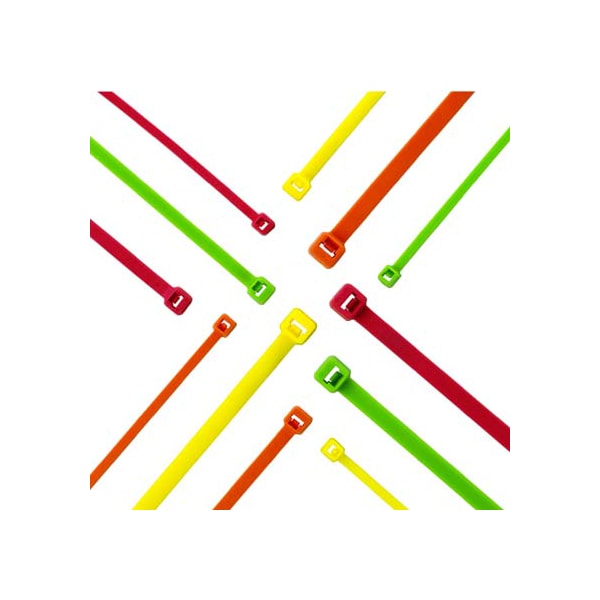

Cable Tie, 11.5L (292mm) Standard, Nylon
| Item | Premium Cable Tie |
|---|---|
| Length | 11-1/2 in |
| Width | 0.19 in |
| Max. Bundle Dia. | 3 in |
| Color | Fluorescent Pink |
| Material | Nylon 6.6 |
| Tensile Strength | 50 lb |
| Indoor/Outdoor | Indoor |
| Thickness | 0.052 in |
| UL Type | 21, 2S |
| Temp. Range | -60 to 85 deg C |
| Application | General Purpose |
| Standards | CSA Certified, UL Recognized, UL 62275 Compliant |
| Overall Length | 11-1/2 in |
| For Use With | GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PTH |
| Depth | 11-1/2 in |
| Overall Length (In.) | 11-1/2 |
| Overall Length (mm) | 292 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Installation Temperature (°F) | -4 |
| Product Type | Cable Tie |
| Minimum Bundle Diameter (In.) | 0.06 |
| Body Width (In.) | 0.19 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Body Thickness (In.) | 0.052 |
| Environment | Indoor |
| Maximum Bundle Diameter (In.) | 3 |
| Body Width (mm) | 4.8 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Standards Met | CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2S, 21S), RoHS Compliant |
| Maximum Bundle Diameter (mm) | 76.2 |
| Body Thickness (mm) | 1.3 |
| Product Color | Pink |
| Product Name | Pan-Ty Fluorescent Cable Tie |
| Product Line | Pan-Ty |
| Additional Information | Cross Section: Standard, Locking Style: Locking, Product Segment: Electrical |
| Cable Manager Type | Cable Tie |
| Product Material | Nylon |
| Product Class | Cable & Wire Ties, Straps |
| Min Operating Temperature | -60 degrees celsius |
| Max Operating Temperature | 85 degrees celsius |
| Package Quantity | 1000 |
