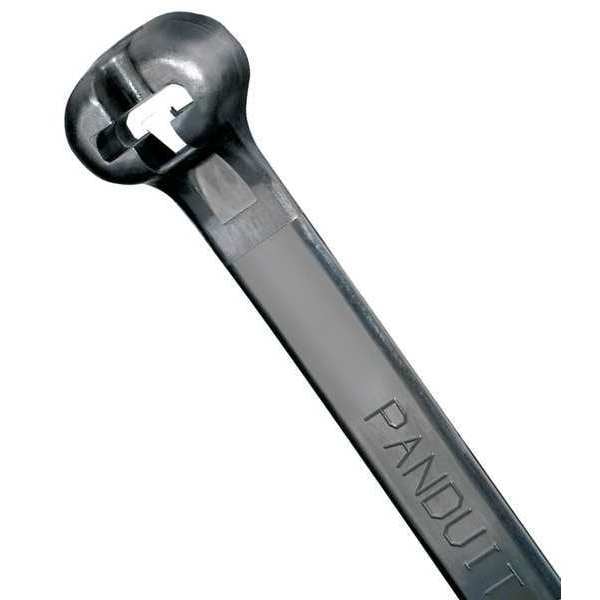

Cable Tie, 11.8", Nylon, Black, PK50
| Item | Cable Tie |
|---|---|
| Length | 11-13/16" |
| Width | 0.27 in |
| Max. Bundle Dia. | 3 in |
| Color | Black |
| Material | Weather Resistant Nylon 6.6 |
| Tensile Strength | 120 lb |
| Indoor/Outdoor | Indoor, Outdoor |
| Design | Dome-top Head |
| Basic Material | Nylon |
| Thickness | 5/64 in |
| Cable Tie Duty | Heavy Duty |
| Locking Style | Stainless Steel Barb |
| Standards | CSA Certified, UL 62275, CSA-C22.2 No. 62275, 11130200, NRC 10CFR50, QPL-AS23190 |
| Temp. Range | -60 to 85°C |
| Resists | UV |
| Product Line | Dome-Top Barb Ty |
| Depth | 11.8 in |
| Cable Manager Type | Cable Tie |
| Product Name | Dome-Top BT Series Barb Ty Weather Resistant Locking Cable Tie |
| Additional Information | Cross Section: Light-Heavy (Straight Tip)Packaging: Std Pkg Qty: 50 |
| Product Type | Cable Tying |
| Product Material | Nylon |
| Environment | Indoor, Outdoor |
| Minimum Loop Tensile Strength (N) | 534 |
| Body Thickness (In.) | 0.065 |
| Minimum Operating Temperature (°F) | -76 |
| For Use With | GTH-E, GS4H-E, GS4EH-E, PTH, STH2, ST3EH |
| Maximum Operating Temperature (°C) | 85 |
| Overall Length (mm) | 300 |
| Body Width (In.) | 0.275 |
| Body Thickness (mm) | 1.7 |
| Minimum Operating Temperature (°C) | -60 |
| Sub Brand | Dome-Top® |
| Minimum Bundle Diameter (In.) | 0.188 |
| Standards Met | UL 62275 (File E56854), CSA-C22.2 No. 62275, 11130200, NRC 10CFR50, QPL-AS23190, CSA Certified, RoHS Compliant |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Installation Temperature (°C) | -20 |
| Maximum Bundle Diameter (mm) | 76 |
| Maximum Bundle Diameter (In.) | 3 |
| Body Width (mm) | 7 |
| Minimum Loop Tensile Strength (lb) | 120 |
| Minimum Installation Temperature (°F) | -4 |
| Minimum Bundle Diameter (mm) | 4.8 |
| Overall Length (In.) | 11.8 |
| Resistance Properties | UV Resistant |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°F) | -4 |
| Minimum Installation Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -60 |
| Package Quantity | 50 |
