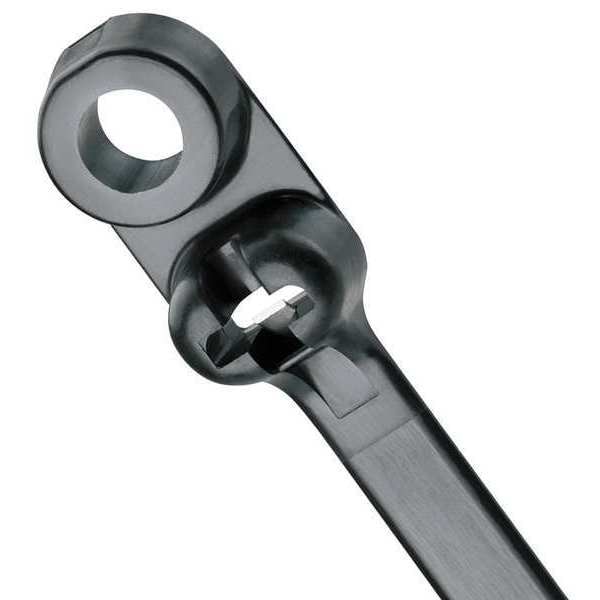

Cable Tie, 16 in L, 4 in Max Bundle Dia., Black, Nylon 6/6, 50 lb Strength, 100 PK
| Item | Cable Tie |
|---|---|
| Cable Tie Style | Halogen-Free, Low-Smoke, Mountable, UV Resistant |
| Nominal Length | 16 in |
| Width | 3/16 in |
| Nominal Max. Bundle Dia. | 4 in |
| Color | Black |
| Material | Nylon 6/6 |
| Tensile Strength | 50 lb |
| Outdoor Use | Yes |
| Mounting Hole Size - Cable Tie | #10 |
| Metal Detectable | No |
| Thickness | 0.05 in |
| Standards | UL 62275 (Type 1, 11), CSA, CE, RoHS |
| Mounting Hole Size | #10 |
| UL Type | 2 |
| Mounting Style | Mounting Head |
| Locking Style | Stainless Steel Barb |
| Tool Code | E, F |
| Features | Cross Section: StandardPackaging:Std Pkg Qty: 100Std Ctn Qty: 500Bulk Pkg Qty: 1000Bulk Ctn Qty: 5000 |
| Operating Temp. Range | -76 to 185 deg F |
| Mounting Method | Screw Mount |
| Min. Temp. Rating | -76 deg F |
| Max. Temp. Rating | 185 deg F |
| Recommended Tool | 376W68, 62PX63, Mfr. No. GS4H, Mfr. No. GTH, Mfr. No. GTS, Mfr. No. GTSL, Mfr. No. PPTS, Mfr. No. PTH, Mfr. No. PTS, Mfr. No. STH2 |
| Number of Straps | 1 |
| Screw Mount Hole Size | 0.19 in |
| Cable Tie Properties | Halogen-Free, Low-Smoke, UV Light Resistant, Weather Resistant |
| Plenum Rated | No |
| Actual Length | 15.6 in |
| Additional Information | Cross Section: StandardPackaging: Std Pkg Qty: 100 |
| Product Line | Dome-Top Barb Ty |
| Depth | 15.6 in |
| Screw Size | #10 (M5) |
| Maximum Bundle Diameter (In.) | 4 |
| Minimum Installation Temperature (°C) | -20 |
| Sub Brand | Dome-Top® |
| Maximum Bundle Diameter (mm) | 101.6 |
| Body Thickness (In.) | 0.052 |
| Body Thickness (mm) | 1.3 |
| Minimum Installation Temperature (°F) | -4 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Max. Bundle Dia. | 4 in |
| Flame Retardant | No |
| Cable Tie Duty | Standard |
| Temp. Range | -76 to 185 deg F |
| Basic Material - Cable Tie | Nylon |
| Package Quantity | 100 |
