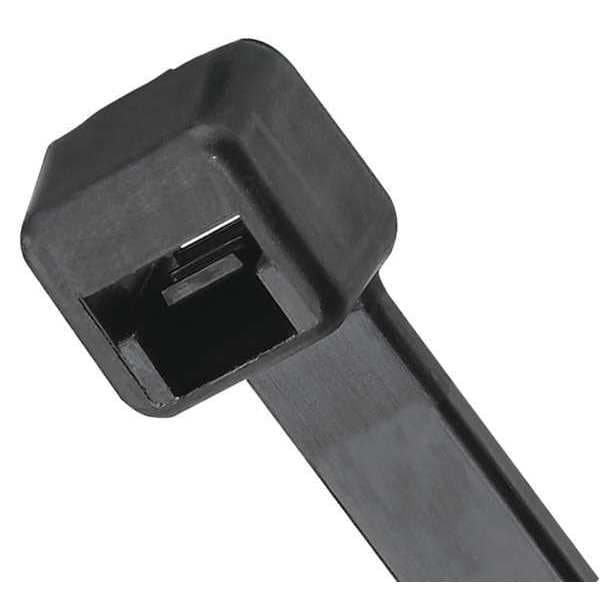

Cable Tie, 7.4"L, Nylon, Black, PK1000
| Item | Cable Tie |
|---|---|
| Length | 7-13/32" |
| Width | 0.19 in |
| Max. Bundle Dia. | 1.88 in |
| Color | Black |
| Material | Weather Resistant Nylon 12 |
| Tensile Strength | 40 lb |
| Indoor/Outdoor | Outdoor |
| Locking Style | Locking |
| Design | One-Piece Locking Wedge |
| Cable Tie Duty | Standard |
| Thickness | 3/64 in |
| Basic Material | Nylon |
| Resists | UV |
| Temp. Range | -60 to 90 deg C |
| Maximum Bundle Diameter (In.) | 1.88 |
| Standards Met | RoHS Compliant |
| Body Thickness (mm) | 1.3 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Loop Tensile Strength (lb) | 40 |
| Minimum Installation Temperature (°F) | -4 |
| Environment | Indoor, Outdoor |
| Maximum Operating Temperature (°C) | 90 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Body Thickness (In.) | 0.052 |
| Body Width (In.) | 0.19 |
| Minimum Installation Temperature (°C) | -20 |
| Body Width (mm) | 4.8 |
| Maximum Bundle Diameter (mm) | 48 |
| Product Type | Cable Tie |
| Overall Length (In.) | 7.4 |
| Resistance Properties | UV Resistant |
| Minimum Loop Tensile Strength (N) | 178 |
| For Use With | GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PTH, PPTS, STS2, STH2 |
| Maximum Operating Temperature (°F) | 194 |
| Overall Length (mm) | 188 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Depth | 7.4 in |
| Product Color | Black |
| Additional Information | Cross Section: Standard, Locking Style: Locking, Product Segment: Electrical |
| Product Line | Pan-Ty |
| Product Material | Nylon |
| Cable Manager Type | Cable Tie |
| Product Name | Pan-Ty Weather Resistant Nylon 12 Cable Tie |
| Product Class | Cable & Wire Ties, Straps |
| Max Operating Temperature | 85 degrees celsius |
| Overall Length | 7.4 in |
| Min Operating Temperature | -60 degrees celsius |
| Package Quantity | 1000 |
