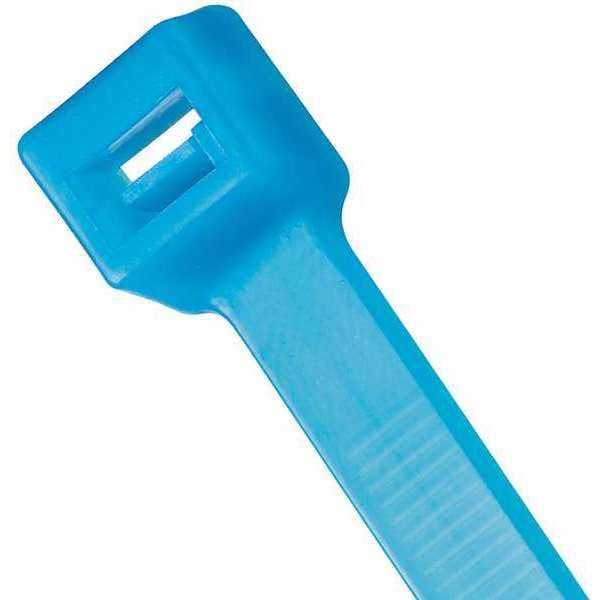

Cable Tie, 8 in L, 2 in Max Bundle Dia., Blue, Tefzel, 30 lb Strength, 100 PK
| Item | Cable Tie |
|---|---|
| Cable Tie Style | Flame Retardant, Heat Stabilized, Impact Resistant, Low-Smoke, Radiation Resistant, UV Resistant |
| Nominal Length | 8 in |
| Width | 0.13 in |
| Nominal Max. Bundle Dia. | 2 in |
| Color | Blue |
| Material | Tefzel |
| Tensile Strength | 30 lb |
| Outdoor Use | Yes |
| Tool Code | E |
| Standards | UL 62275 (Type 1, 11), CSA, CE, RoHS |
| Metal Detectable | No |
| UL Type | 2 |
| Thickness | 0.04 in |
| Locking Style | Plastic Pawl |
| Operating Temp. Range | -76 to 338 deg F |
| Recommended Tool | 376V35, 52ZJ96, Mfr. No. PTS |
| Actual Length | 8 in |
| Cable Tie Properties | Impact Resistant, Low-Smoke, Radiation Resistant, UV Light Resistant, Weather Resistant |
| Plenum Rated | No |
| Number of Straps | 1 |
| Max. Temp. Rating | 338 deg F |
| Min. Temp. Rating | -76 deg F |
| Product Line | Pan-Ty |
| Additional Information | Cross Section: Intermediate |
| Depth | 8 in |
| Minimum Loop Tensile Strength (lb) | 30 |
| Minimum Installation Temperature (°F) | -4 |
| Minimum Installation Temperature (°C) | -20 |
| For Use With | GTS-E, GS2B-E, PTS, PPTS, STS2 |
| Body Thickness (mm) | 1.1 |
| Body Thickness (In.) | 0.045 |
| Maximum Bundle Diameter (In.) | 2 |
| Maximum Bundle Diameter (mm) | 51 |
| Minimum Loop Tensile Strength (N) | 133 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Max. Bundle Dia. | 2 in |
| Flame Retardant | Yes |
| Basic Material - Cable Tie | Specialty |
| Cable Tie Duty | Miniature |
| Temp. Range | -76 to 338 deg F |
| Package Quantity | 100 |
