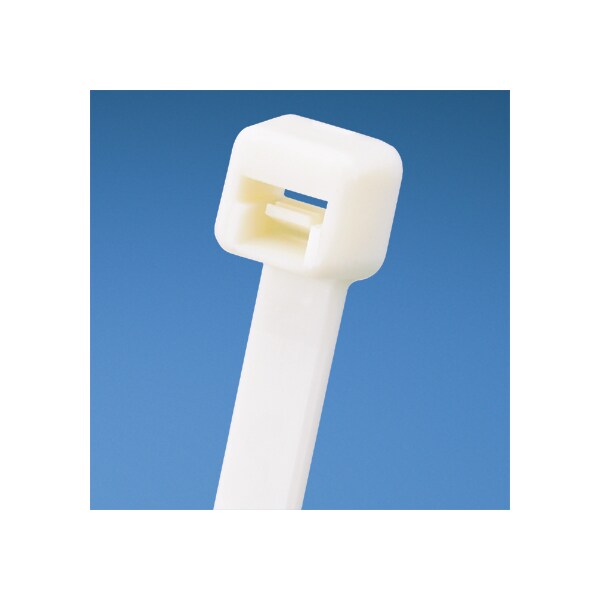

Cable Tie, 8.0L (203mm), Intermediate, Flame, PLT2I-M69, PK 1000
| Item | Premium Cable Tie |
|---|---|
| Length | 8 in |
| Width | 0.135 in |
| Max. Bundle Dia. | 2 in |
| Color | Ivory |
| Material | Nylon 6.6 |
| Tensile Strength | 40 lb |
| Indoor/Outdoor | Indoor |
| UL Type | 21, 2 |
| Flame Retardant | Yes |
| Standards | CSA Certified, UL Recognized, UL 62275 Compliant |
| Thickness | 0.047 in |
| Temp. Range | -60 to 100 deg C |
| Application | General Purpose |
| Depth | 8 in |
| Overall Length | 8 in |
| For Use With | GTS-E, GS2B-E, PTS |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Installation Temperature (°F) | -4 |
| Maximum Bundle Diameter (mm) | 50.8 |
| Minimum Loop Tensile Strength (N) | 178 |
| Overall Length (mm) | 203 |
| Standards Met | CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2, 21), RoHS Compliant |
| Overall Length (In.) | 8 |
| Maximum Operating Temperature (°C) | 100 |
| Product Type | Cable Tie |
| Minimum Loop Tensile Strength (lb) | 40 |
| Body Width (mm) | 3.4 |
| Maximum Bundle Diameter (In.) | 2 |
| Resistance Properties | Flame Retardant |
| Minimum Operating Temperature (°F) | -76 |
| Maximum Operating Temperature (°F) | 212 |
| Body Width (In.) | 0.135 |
| Body Thickness (In.) | 0.047 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Installation Temperature (°C) | -20 |
| Body Thickness (mm) | 1.2 |
| Environment | Indoor |
| Cable Manager Type | Cable Tie |
| Product Color | Ivory |
| Product Line | Pan-Ty |
| Product Material | Nylon |
| Additional Information | Cross Section: Intermediate, Locking Style: Locking, Product Segment: Electrical |
| Product Name | Pan-Ty Flame Retardant Cable Tie |
| Product Class | Cable & Wire Ties, Straps |
| Min Operating Temperature | -60 degrees celsius |
| Package Quantity | 1000 |
