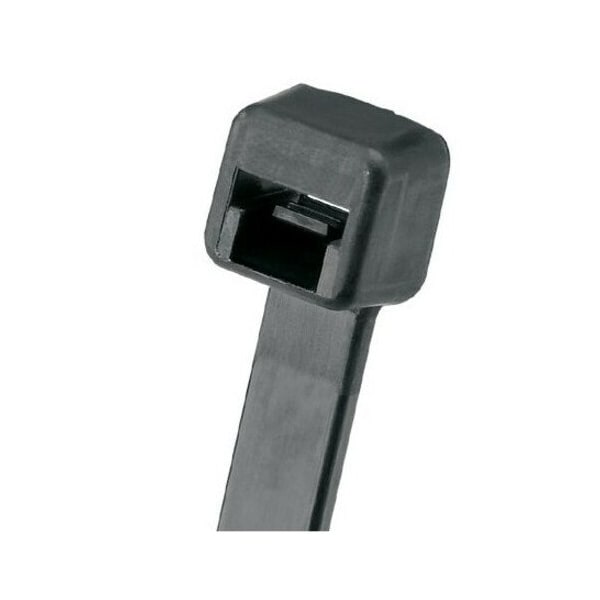

Cable Tie, Int, 5.6", Hswr, Bl, PK1000
| Item | Cable Tie,Int,5.6",Hswr,Bl,PK1000 |
|---|---|
| Length | 5.6 |
| Width | 0.14 in |
| Max. Bundle Dia. | 1.38 in |
| Color | Black |
| Material | Nylon 6.6 |
| Tensile Strength | 40 lb |
| Indoor/Outdoor | Indoor, Outdoor |
| Standards | UL Listed, UL Compliant 62275, AH-2 Plenum Rated |
| Temp. Range | -60 to 115 deg C |
| Tensile Strength - Cable Tie | 40 lb |
| Resists | Heat, UV |
| Thickness | 40 mil |
| Overall Length | 5.6 in |
| For Use With | GTS-E, GS2B-E, PTS, PPTS, STS2 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Body Width (In.) | 0.142 |
| Minimum Loop Tensile Strength (N) | 178 |
| Minimum Loop Tensile Strength (lb) | 40 |
| Maximum Bundle Diameter (mm) | 35 |
| Minimum Installation Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 115 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Body Width (mm) | 3.6 |
| Maximum Bundle Diameter (In.) | 1.38 |
| Environment | Indoor, Outdoor |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Body Thickness (In.) | 0.045 |
| Standards Met | UL Compliant 62275, Type 2, UL Listed #E56854, Rated for AH-2 Plenum, RoHS Compliant |
| Product Type | Cable Tie |
| Overall Length (In.) | 5.6 |
| Maximum Operating Temperature (°F) | 239 |
| Overall Length (mm) | 142 |
| Resistance Properties | Heat and UV Resistant |
| Minimum Installation Temperature (°F) | -4 |
| Body Thickness (mm) | 1.1 |
| Product Material | Nylon 6.6 |
| Product Name | Pan-Ty Cable Tie |
| Product Line | Pan-Ty |
| Product Color | Black |
| Minimum Loop Tensile Strength | 40 lb |
| Cable Manager Type | Cable Tie |
| Product Class | Management, Protection, Wire Routing |
| Min Operating Temperature | -60 degrees celsius |
| Package Quantity | 1000 |
