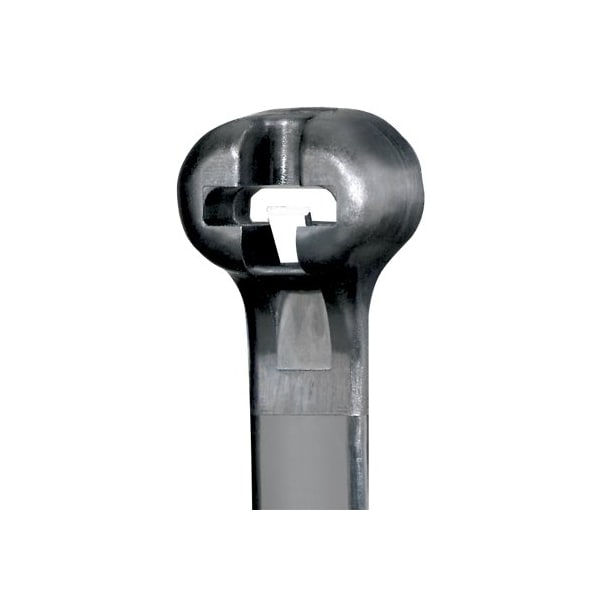

Cable Tie, Metal Barb, 12.0L (305mm), St
| Item | Cable Tie |
|---|---|
| Length | 12 in |
| Width | 0.185 in |
| Max. Bundle Dia. | 3 in |
| Color | Black |
| Material | Nylon 6.6 |
| Tensile Strength | 50 lb |
| Indoor/Outdoor | Indoor, Outdoor |
| Standards | CSA Certified, UL 62275, CSA-C22.2 No. 62275, 11130200, NRC 10CFR50, QPL-AS23190 |
| Resists | Heat, UV, Weather |
| Temp. Range | -60 to 115 deg C |
| Thickness | 0.052 in |
| For Use With | GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PTH, PPTS, STS2, STH2 |
| Overall Length | 12 in |
| Sub Brand | Dome-Top® |
| Body Thickness (In.) | 0.052 |
| Minimum Installation Temperature (°F) | -4 |
| Minimum Operating Temperature (°C) | -60 |
| Maximum Bundle Diameter (In.) | 3 |
| Body Width (In.) | 0.185 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Resistance Properties | Heat and UV Resistant |
| Minimum Operating Temperature (°F) | -76 |
| Maximum Bundle Diameter (mm) | 76 |
| Environment | Indoor, Outdoor |
| Product Type | Cable Tie |
| Overall Length (mm) | 305 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Minimum Installation Temperature (°C) | -20 |
| Maximum Operating Temperature (°F) | 239 |
| Body Thickness (mm) | 1.3 |
| Maximum Operating Temperature (°C) | 115 |
| Overall Length (In.) | 12 |
| Body Width (mm) | 4.7 |
| Standards Met | UL 62275 (File E56854), CSA-C22.2 No. 62275, 11130200, NRC 10CFR50, QPL-AS23190, CSA Certified, RoHS Compliant |
| Product Color | Black |
| Product Material | Nylon 6.6 |
| Product Name | Dome-Top Cable Tie |
| Cable Manager Type | Cable Tie |
| Minimum Loop Tensile Strength | 50 lb |
| Product Line | Dome-Top |
| Product Class | Management, Protection, Wire Routing |
| Min Operating Temperature | -60 degrees celsius |
| Max Operating Temperature | 115 degrees celsius |
| Package Quantity | 1000 |
