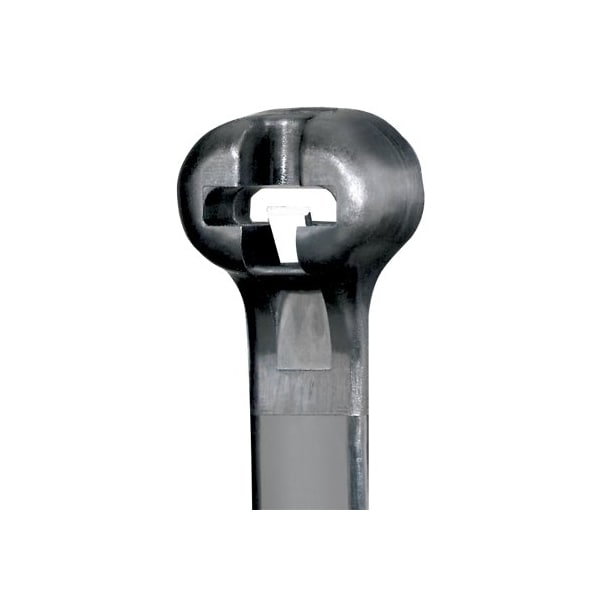

Cable Tie, Metal Barb, 14.9L (378mm), Li
| Item | Cable Tie |
|---|---|
| Length | 14.9 in |
| Width | 0.275 in |
| Max. Bundle Dia. | 4 in |
| Color | Black |
| Material | Nylon 6.6 |
| Tensile Strength | 120 lb |
| Indoor/Outdoor | Indoor, Outdoor |
| Resists | Heat, UV, Weather |
| Standards | UL 62275, CSA-C22.2 No. 62275, Cert 05968/C0, BV File ACE 14/601/01 Product Code: 2535H; 89/60111 (E3), 11130200, QPL-AS23190 |
| Temp. Range | -60 to 115 deg C |
| Thickness | 0.065 in |
| For Use With | GTH-E, GS4H-E, GS4EH-E, PTH, STH2, ST3EH |
| Overall Length | 14.9 in |
| Overall Length (mm) | 378 |
| Body Thickness (mm) | 1.7 |
| Body Width (In.) | 0.275 |
| Minimum Bundle Diameter (In.) | 0.188 |
| Body Width (mm) | 7 |
| Resistance Properties | Heat and UV Resistant |
| Minimum Loop Tensile Strength (lb) | 120 |
| Sub Brand | Dome-Top® |
| Minimum Loop Tensile Strength (N) | 534 |
| Maximum Bundle Diameter (mm) | 102 |
| Minimum Operating Temperature (°C) | -60 |
| Maximum Operating Temperature (°C) | 115 |
| Overall Length (In.) | 14.9 |
| Body Thickness (In.) | 0.065 |
| Maximum Bundle Diameter (In.) | 4 |
| Maximum Operating Temperature (°F) | 239 |
| Minimum Installation Temperature (°F) | -4 |
| Environment | Indoor, Outdoor |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Bundle Diameter (mm) | 4.8 |
| Standards Met | UL 62275 (File E56854), CSA-C22.2 No. 62275 (File 31212), Cert 05968/C0, BV File ACE 14/601/01 Product Code: 2535H; 89/60111 (E3), 11130200, QPL-AS23190, RoHS Compliant |
| Minimum Installation Temperature (°C) | -20 |
| Product Type | Cable Tie |
| Product Color | Black |
| Product Material | Nylon 6.6 |
| Cable Manager Type | Cable Tie |
| Product Line | Dome-Top |
| Product Name | Dome-Top Cable Tie |
| Minimum Loop Tensile Strength | 120 lb |
| Max Operating Temperature | 115 degrees celsius |
| Product Class | Management, Protection, Wire Routing |
| Min Operating Temperature | -60 degrees celsius |
| Package Quantity | 250 |
