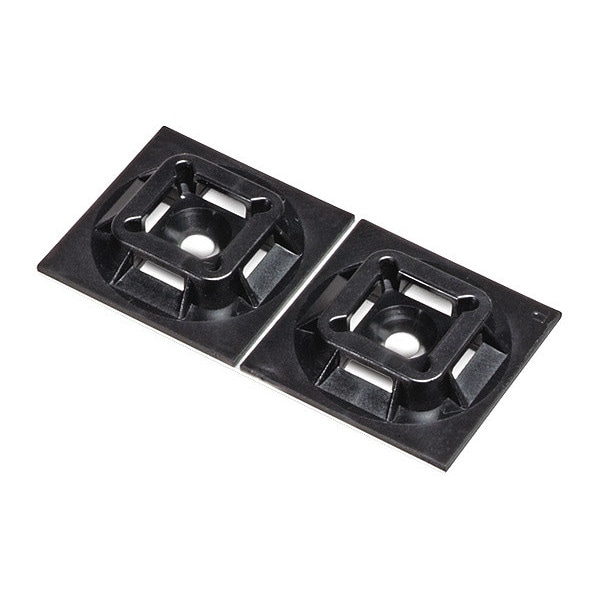

Cable Tie, Mnt, Hitmp, Adh, 1"ch, Wrbl, PK100
| Item | Cable Tie Mounting Base |
|---|---|
| Size | 1 in L x 1 in W x 0.2 in H |
| Color | Black |
| Material | ABS |
| Temp. Range | -20 to 179 deg F |
| Standards | CE Compliant, RoHS Compliant, UL E136577 |
| Height | 0.2 in |
| For Use With | Miniature, Intermediate and Standard Cable Ties |
| Length | 1 in |
| Mounting Method | Adhesive Mount |
| Clip Type | Four-Way |
| Width | 1 in |
| Slot Height | 0.06 in |
| Max. Temp. Rating | 179 deg F |
| Slot Width | 0.2 in |
| Flame Retardant | No |
| Metal Detectable | No |
| Number of Entries | 4 |
| Min. Temp. Rating | -20 deg F |
| Length (Straight Wireway) | 1 in |
| Mount Method | Acrylic Adhesive Tape |
| Maximum Operating Temperature (°F) | 158 |
| Overall Width (In.) | 1 |
| Minimum Operating Temperature (°C) | -29 |
| Overall Length (mm) | 25.4 |
| Maximum Operating Temperature (°C) | 70 |
| Overall Length (In.) | 1 |
| Overall Width (mm) | 50.3 |
| Maximum Compatible Panel Thickness (mm) | 1 |
| Product Type | Cable Tie Mount |
| Static Load Capacity (lb) | 0.5 |
| Application | Used with Miniature, Intermediate, and Standard Cables Ties |
| Overall Height (mm) | 5.1 |
| Environment | Indoor, Outdoor |
| Overall Height (In.) | 0.2 |
| Static Load Capacity (kg) | 0.227 |
| Maximum Compatible Panel Thickness (In.) | 0.04 |
| Minimum Operating Temperature (°F) | -20 |
| Mounting Hole Thread Size | 0.16 |
| Resistance Properties | UV Resistant |
| Additional Information | Used With Cable Ties: Miniature, Intermediate, Standard |
| Product Color | Black |
| Cable Manager Type | Cable Tie Mount |
| Depth | 1 in |
| Product Name | 4-Way Adhesive Backed Cable Tie Mount |
| Product Material | Acrylonitrile Butadiene Styrene |
| Standards Met | CE Compliant, UL Recognized: E136577, RoHS Compliant |
| Maximum Operating Temperature (°C) | 70 |
| Minimum Operating Temperature (°F) | -20 |
| Minimum Operating Temperature (°C) | -29 |
| Maximum Operating Temperature (°F) | 158 |
| Package Quantity | 100 |
