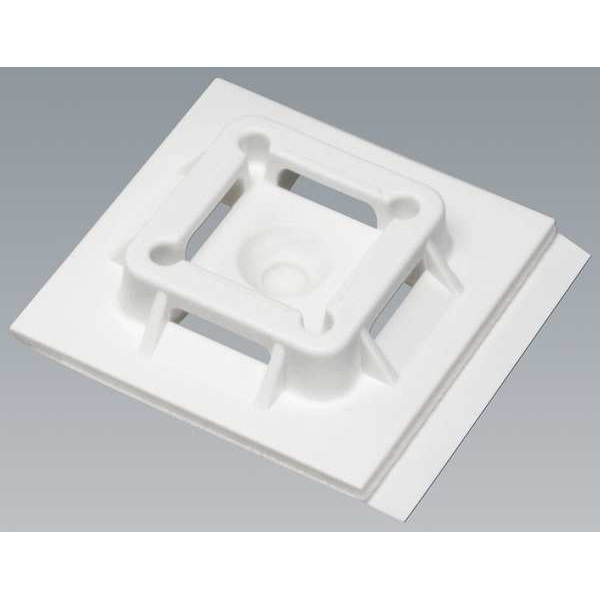

Cable Tie Mounting Pad, 4-Way, Naturl, PK50
| Item | Cable Tie Mounting Base |
|---|---|
| Color | White |
| Mounting Method | Adhesive Mount |
| Length | 1-1/2 in |
| Width | 1-1/2 in |
| For Use With | Miniature, Intermediate and Standard Cable Ties |
| Slot Height | 0.09 in |
| Temp. Range | -104 to 185 deg F |
| Height | 0.34 in |
| Material of Construction | Nylon 6/6 |
| Clip Type | Four-Way |
| Slot Width | 0.42 in |
| Standards | CE Compliant, RoHS Compliant |
| Material | Nylon 6/6 |
| Metal Detectable | No |
| Min. Temp. Rating | -20 deg F |
| Max. Temp. Rating | 185 deg F |
| Flame Retardant | No |
| Size | 1.5 in L x 1.5 in W x 0.34 in H |
| Number of Entries | 4 |
| Length (Straight Wireway) | 1-1/2 in |
| Static Load Capacity (lb) | 1.12 |
| Overall Width (In.) | 1-1/2 |
| Static Load Capacity (kg) | 0.5 |
| Application | Low Profile Super-Grip „¢ Adhesive Backed Cable Tie Mounts, Used Where Space is Limited, to Keep Bundle Close to Mounting Surface and with Super-Grip „¢ Cable Ties |
| Overall Height (mm) | 8.75 |
| Overall Height (In.) | 0.34 |
| Minimum Operating Temperature (°F) | -20 |
| Maximum Operating Temperature (°F) | 120 |
| Maximum Operating Temperature (°C) | 49 |
| Minimum Operating Temperature (°C) | -29 |
| Overall Length (mm) | 38.1 |
| Overall Width (mm) | 38.1 |
| Product Type | Cable Tie Mounts - Adhesive Backed |
| Mount Method | Rubber Adhesive Tape |
| Environment | Indoor |
| Overall Length (In.) | 1-1/2 |
| Standards Met | CE Compliant,RoHS Compliant |
| Sub Brand | Super-Grip® |
| Minimum Operating Temperature (°C) | -29 |
| Maximum Operating Temperature (°C) | 49 |
| Minimum Operating Temperature (°F) | -20 |
| Maximum Operating Temperature (°F) | 120 |
| Package Quantity | 50 |
