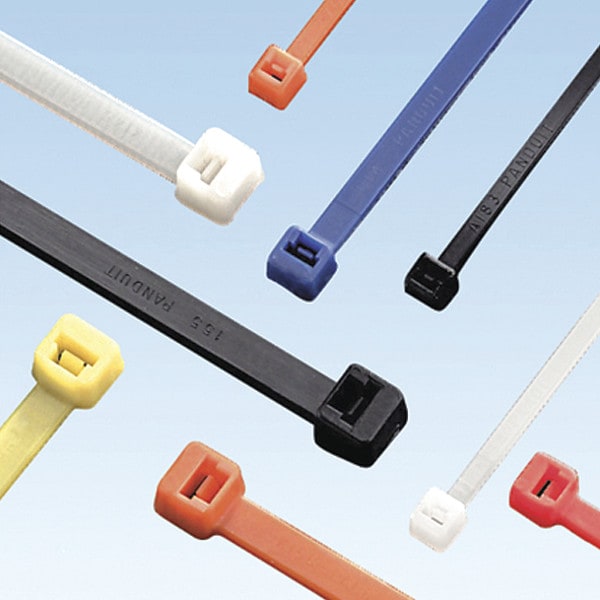

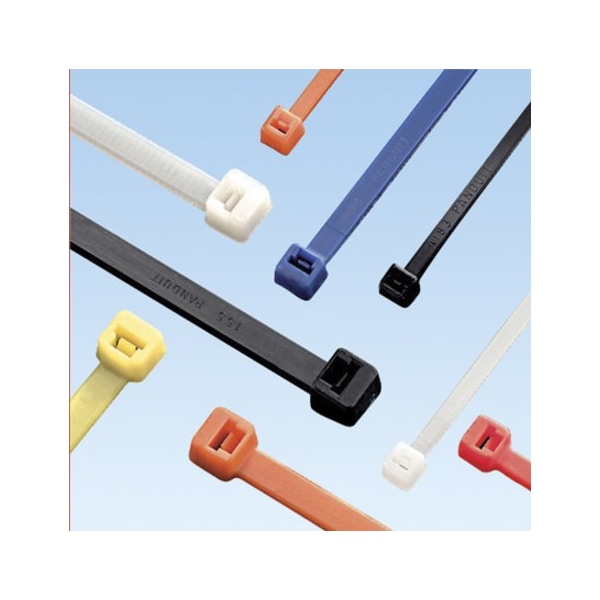

Cable Tie, Standard, 7.40"L, Purple, PK100
| Item | Cable Tie |
|---|---|
| Length | 7.4 in |
| Width | 0.19 in |
| Max. Bundle Dia. | 1.88 in |
| Color | Purple |
| Material | Nylon 6/6 |
| Tensile Strength | 50 lb |
| Flame Retardant | No |
| Application | General Purpose |
| Cable Tie Duty | Intermediate |
| Standards | CSA Certified, UL, RoHS |
| Length - Cable Tie | 7.4 in |
| Thickness | 0.06 in |
| Locking Style | Plastic Pawl |
| Metal Detectable | No |
| Cable Tie Style | Standard |
| Basic Material - Cable Tie | Nylon |
| Tensile Strength - Cable Tie | 50 lb |
| Width - Cable Tie | 0.32 in |
| UL Type | 21, 2 |
| Temp. Range | -76 to 185 deg F |
| Max. Temp. Rating | 185 deg F |
| Number of Straps | 1 |
| Actual Length | 7.4 in |
| Min. Temp. Rating | -76 deg F |
| Outdoor Use | No |
| Nominal Length | 7-1/2 in |
| Nominal Max. Bundle Dia. | 1-7/8 in |
| For Use With | GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PTH |
| Minimum Bundle Diameter (In.) | 0.06 |
| Environmentally Friendly | Yes |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength | 50 lb |
| Minimum Installation Temperature (°C) | -20 |
| Body Width (mm) | 4.8 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Product Name | Cable Tie |
| Body Thickness (In.) | 0.052 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Standards Met | CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2, 21), RoHS Compliant |
| Body Thickness (mm) | 1.3 |
| Body Width (In.) | 0.19 |
| Overall Length (mm) | 188 |
| Maximum Bundle Diameter (In.) | 1.88 |
| Product Material | Nylon 6.6 |
| Environment | Plenum |
| Overall Length (In.) | 7.4 |
| Maximum Bundle Diameter (mm) | 47.8 |
| Product Color | Purple |
| Minimum Operating Temperature (°F) | -76 |
| Maximum Operating Temperature (°C) | 85 |
| Cable Manager Type | Cable Tie |
| Product Type | Cable Tying |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Installation Temperature (°F) | -4 |
| Package Quantity | 100 |
