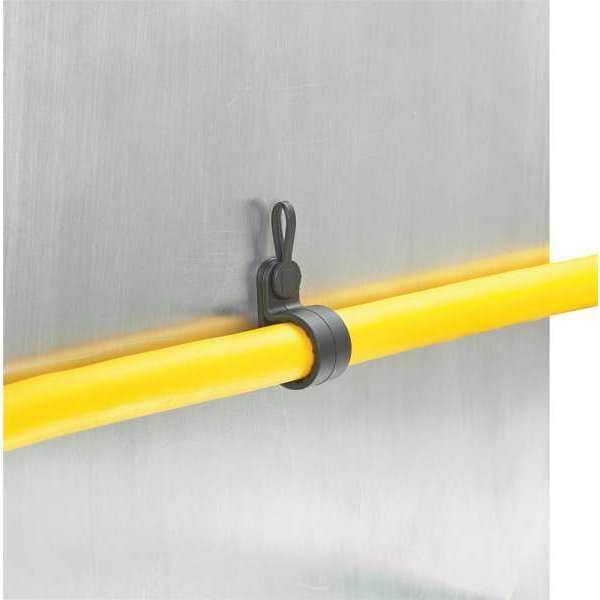

Clamp, .88" Bdl, Im, Wrbl, PK100
| Item | Clamp,.88" Bdl,Im,Wrbl,PK100 |
|---|---|
| Color | Black |
| Width | 0.62 in |
| Material | Weather Resistant Nylon 6.6 |
| Mount Method | Push Barb |
| Overall Width (In.) | 0.62 |
| Maximum Bundle Diameter (In.) | 0.88 |
| Overall Width (mm) | 15.7 |
| Mounting Hole Diameter (mm) | 7.1 |
| Resistance Properties | Weather Resistant |
| Maximum Operating Temperature (°C) | 85 |
| Overall Height (In.) | 1.07 |
| Minimum Operating Temperature (°F) | -76 |
| Maximum Bundle Diameter (mm) | 22.4 |
| Maximum Operating Temperature (°F) | 185 |
| Product Type | Cable Clamp |
| Mounting Hole Diameter (In.) | 0.28 |
| Minimum Operating Temperature (°C) | -60 |
| Environment | Indoor, Outdoor |
| Overall Height (mm) | 27.2 |
| Application | For securing wires, cables, and hydraulic hoses in nearly all transportation applications including light vehicles, heavy trucks, and specialty vehicles. |
| Product Line | Pan-Clamp |
| Cable Manager Type | Cable Clamp |
| Additional Information | Environment: Indoors/Outdoors, Maximum Bundle Diameter: 0.88 inch, Maximum Panel Thickness: 0.126 inch, Panel Hole Diameter: 0.281 inch, Bundle Offset: 0.89 inch |
| Certifications & Standards | RoHS |
| Product Color | Black |
| Product Material | Nylon 6.6 |
| Product Name | Pan-Clamp Heavy Duty Fixed Diameter Clamp |
| Product Class | Wire Routing, Management & Protection |
| Min Operating Temperature | -60 degrees celsius |
| Max Operating Temperature | 85 degrees celsius |
| Package Quantity | 100 |
