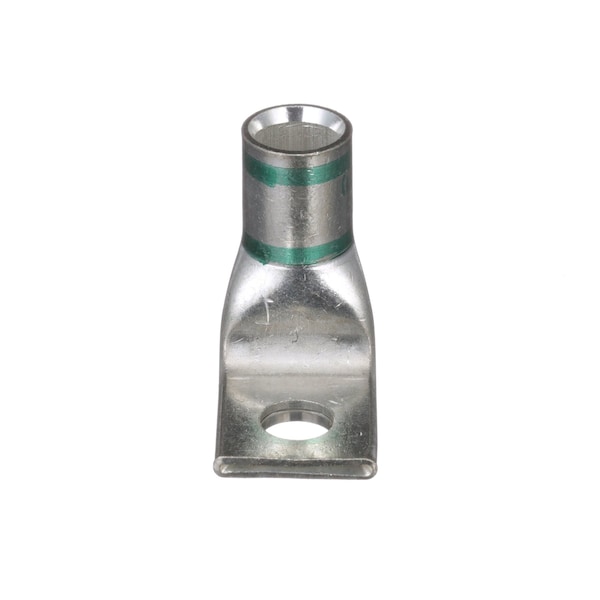

Terminal de compresión de cobre, 1 agujero, calibre #1 F.
| Material | Copper |
|---|---|
| Color Code | Green |
| Tongue Width - Wire Connector | 0.76 |
| Tool Type | Tin-Plated Copper Compression Connectors - Lugs |
| Tongue Style | Standard |
| Overall Length | 1.51 in |
| Barrel Length | 0.66 |
| Hole Center to Center | 44697 |
| Panduit Die Index Number | P37 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Tongue Angle | 90° |
| Tongue Type | Standard |
| Barrel Length (mm) | 16.8 |
| Product Type | Copper Compression Connectors - Lugs |
| Finish/Coating | Tin-Plated |
| Maximum Voltage (kV) | 35 |
| Burndy Die Index Number | 11 |
| Wire Strip Length (mm) | 19.1 |
| Stud Hole Size (mm) | 7.9 |
| UL Temperature Rating (°C) | 90 |
| Barrel Length (In.) | 0.66 |
| Tongue Width (mm) | 19.3 |
| Tongue Width (In.) | 0.76 |
| Overall Length (mm) | 38.4 |
| Stud Hole Size (In.) | 45,062 |
| Tongue Thickness (In.) | 0.12 |
| Overall Length (In.) | 1.51 |
| Tongue Thickness (mm) | 3 |
| Copper Code Conductor Size (AWG) | 1 |
| Base Material | Copper |
| Product Class | Wire Termination |
| Package Quantity | 1 |
