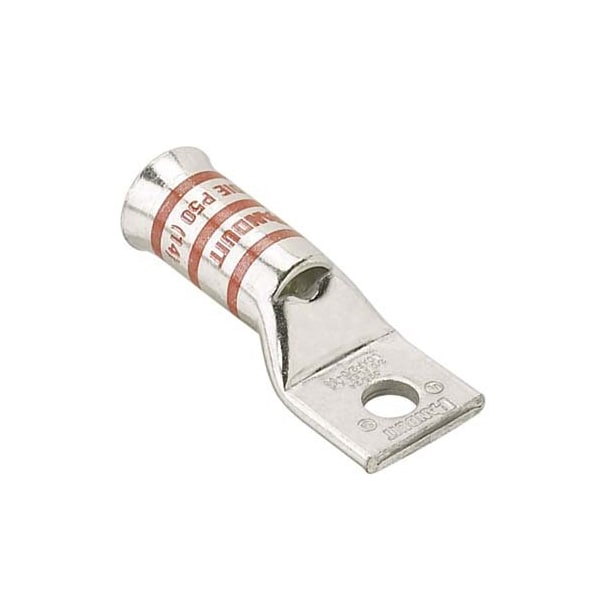

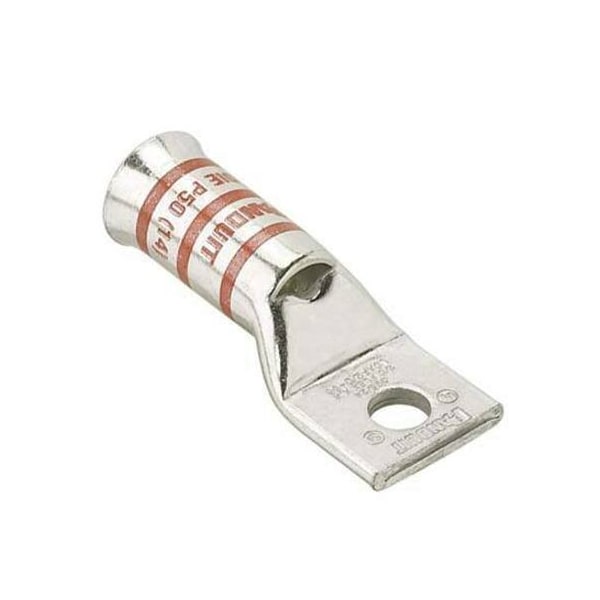

Ojal de compresión de cobre, 1 orificio, calibre #1, barril acampanado, LCAF1-12-X
| Length | 1-1/2 in |
|---|---|
| Color Code | Pink |
| Overall Length | 2.31 in |
| Features | Corrosion Resistant, Angled Connector |
| Barrel Length (In.) | 0.94 |
| Stud Hole Size (In.) | 1 to 2 |
| UL Temperature Rating (°C) | 90 |
| Stud Hole Size (mm) | 12.7 |
| Wire Strip Length (mm) | 25.4 |
| Class K Copper Flex Conductor Size (AWG) | 1 |
| Tongue Width (In.) | 0.8 |
| Base Material | Copper |
| Maximum Voltage (kV) | 35 |
| Overall Length (In.) | 2.31 |
| Tongue Thickness (In.) | 0.12 |
| Tongue Width (mm) | 20.3 |
| Finish/Coating | Tin-Plated |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Class M Copper Flex Conductor Size (AWG) | 1 |
| Tongue Angle | Straight |
| Tongue Thickness (mm) | 3 |
| Wire Strip Length (In.) | 1 |
| Product Type | Copper Compression Connectors - Lugs |
| Barrel Length (mm) | 23.9 |
| Panduit Die Index Number | P42 |
| Tongue Type | Standard |
| DLO Copper Flex Conductor Size (AWG) | 1 |
| Overall Length (mm) | 58.7 |
| Product Material | Copper |
| Connector Details | 1 x Terminal |
| Product Name | Terminal Connector |
| Connector Plating | Tin |
| Product Class | Wire Termination |
| Package Quantity | 1 |
