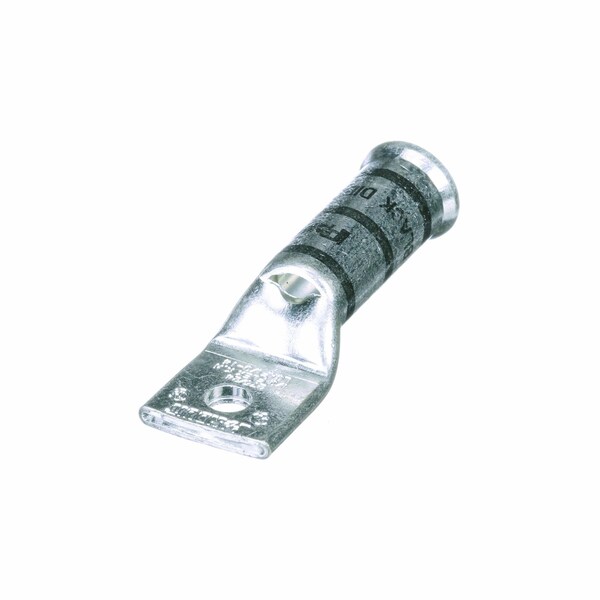

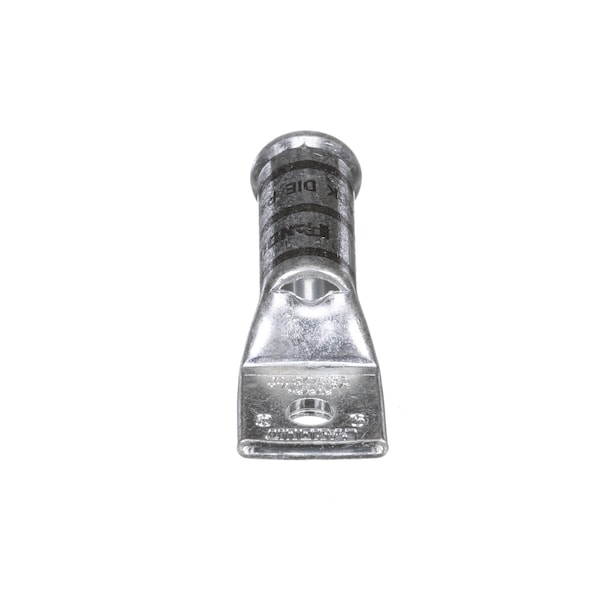

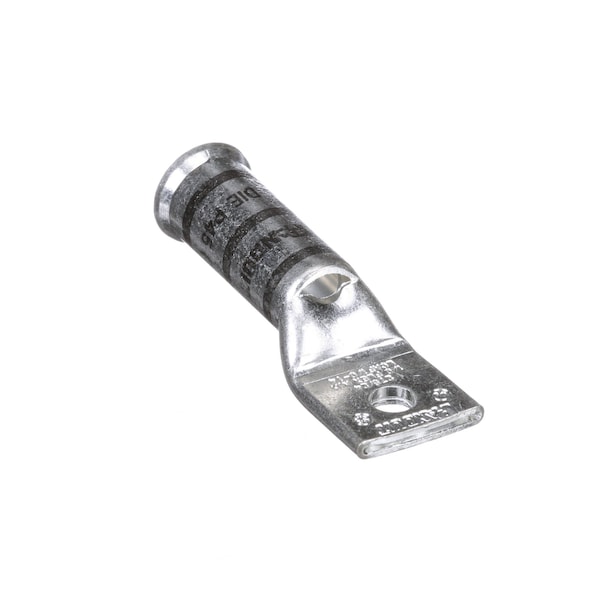

Terminal de compresión de cobre, 1 orificio, calibre 1/0, barril acampanado, LCAF1/0-14-X.
| Length | 4.3 in |
|---|---|
| Color Code | Black |
| Overall Length | 2.46 in |
| Features | Angled Connector, Corrosion Resistant |
| Finish/Coating | Tin-Plated |
| DLO Copper Flex Conductor Size (AWG) | 36,526 |
| Stud Hole Size (In.) | 44,930 |
| Product Type | Copper Compression Connectors - Lugs |
| Tongue Width (In.) | 0.85 |
| Barrel Length (In.) | 1.35 |
| Overall Length (In.) | 2.46 |
| Tongue Width (mm) | 21.6 |
| Wire Strip Length (mm) | 36.5 |
| Tongue Thickness (In.) | 0.13 |
| Tongue Thickness (mm) | 3.3 |
| Barrel Length (mm) | 34.3 |
| Panduit Die Index Number | P45 |
| Stud Hole Size (mm) | 6.4 |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35 |
| Class K Copper Flex Conductor Size (AWG) | 36,526 |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Overall Length (mm) | 62.5 |
| Base Material | Copper |
| Class M Copper Flex Conductor Size (AWG) | 36,526 |
| Connector Details | 1 x Terminal |
| Product Material | Copper |
| Connector Plating | Tin |
| Product Name | Terminal Connector |
| Product Class | Lugs, Splices, Accessories, Split Bolts |
| Package Quantity | 1 |
