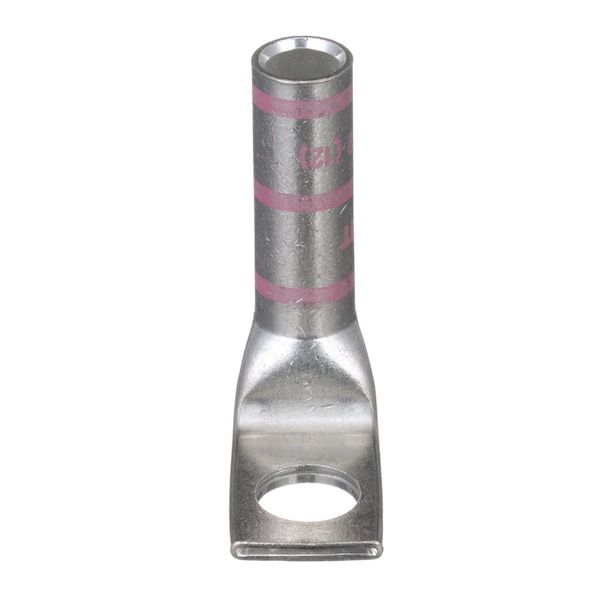

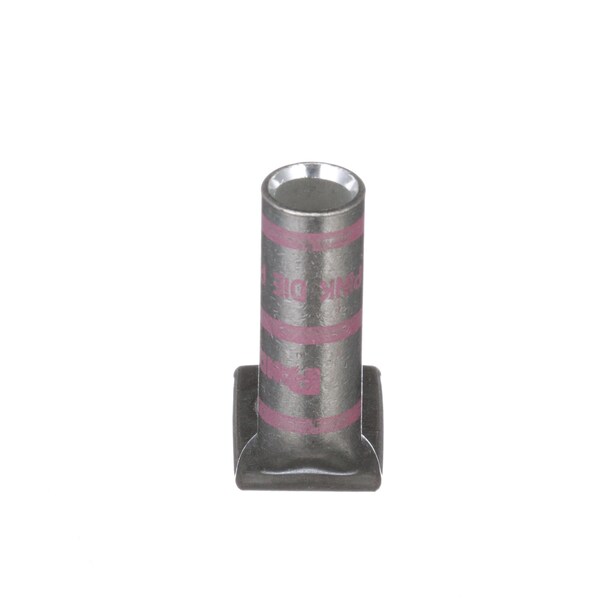

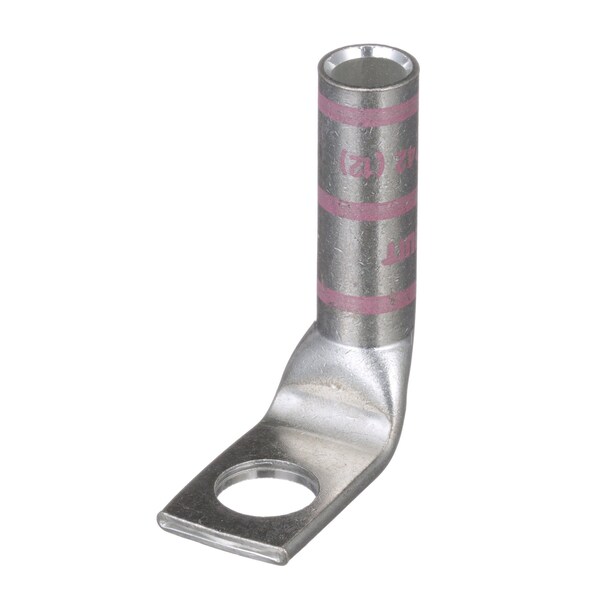

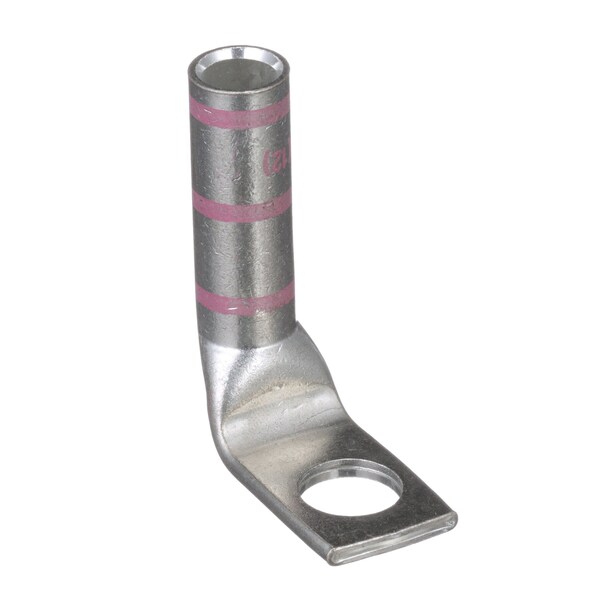

Terminal de compresión de cobre, 1 agujero, 1/0 AWG.
| Length | 2.7 in |
|---|---|
| Color Code | Pink |
| Overall Length | 1.82 in |
| Features | 90° Angled Connector, Corrosion Resistant |
| Product Type | Copper Compression Connectors - Lugs |
| Stud Hole Size (mm) | 12.7 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| UL Temperature Rating (°C) | 90 |
| Wire Strip Length (In.) | 1.5 |
| Stud Hole Size (In.) | 1 to 2 |
| Overall Length (mm) | 54.4 |
| Tongue Thickness (In.) | 0.12 |
| Burndy Die Index Number | 12 |
| Maximum Voltage (kV) | 35 |
| Wire Strip Length (mm) | 38.1 |
| Tongue Width (mm) | 20.3 |
| Tongue Angle | 90° |
| Barrel Length (In.) | 1.44 |
| Barrel Length (mm) | 36.6 |
| Barrel Type | Long Barrel Length without Inspection Window |
| Base Material | Copper |
| Tongue Width (In.) | 0.8 |
| Overall Length (In.) | 1.82 |
| Finish/Coating | Tin-Plated |
| Copper Code Conductor Size (AWG) | 36,526 |
| Tongue Thickness (mm) | 3 |
| Tongue Type | Standard |
| Panduit Die Index Number | P42 |
| Connector Details | 1 x Terminal |
| Product Name | Terminal Connector |
| Connector Plating | Tin |
| Product Material | Copper |
| Product Class | Wire Termination |
| Package Quantity | 1 |
