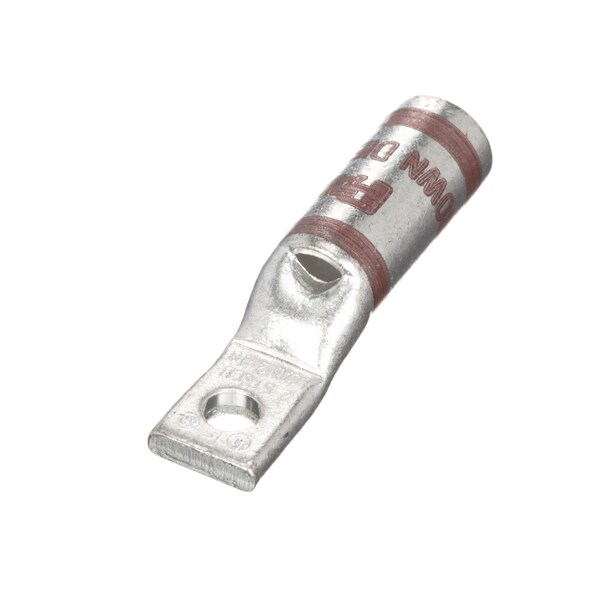

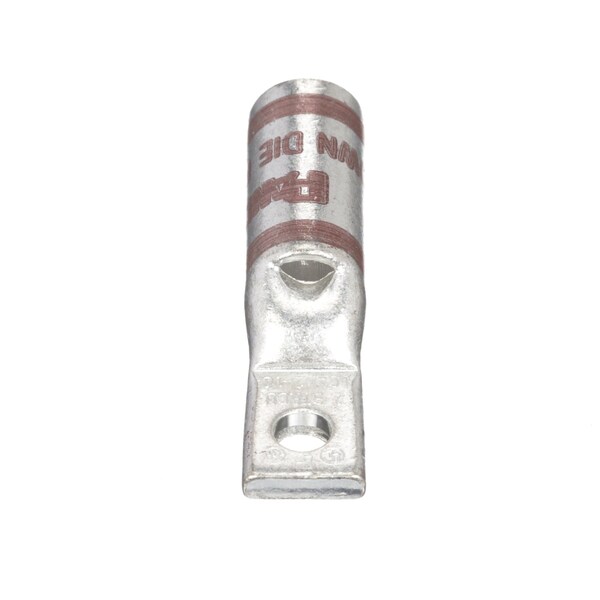

Terminal de compresión de cobre, 1 orificio, calibre #2, lengüeta estrecha, LCAN2-10-Q.
| Length | 2.6 in |
|---|---|
| Color Code | Brown |
| Overall Length | 1.67 in |
| Features | Corrosion Resistant, Angled Connector |
| Barrel Length (In.) | 0.88 |
| Product Type | Copper Compression Connectors - Lugs |
| Tongue Thickness (In.) | 0.12 |
| Tongue Angle | Straight |
| Overall Length (mm) | 42.4 |
| Finish/Coating | Tin-Plated |
| Wire Strip Length (mm) | 23.8 |
| Tongue Type | Narrow |
| UL Temperature Rating (°C) | 90 |
| Panduit Die Index Number | P33 |
| Overall Length (In.) | 1.67 |
| Tongue Width (mm) | 10.7 |
| Stud Hole Size (In.) | 0.19 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Burndy Die Index Number | 10 |
| Base Material | Copper |
| Barrel Length (mm) | 22.4 |
| Copper Code Conductor Size (AWG) | 2 |
| Stud Hole Size (mm) | 4.8 |
| Tongue Thickness (mm) | 3 |
| Tongue Width (In.) | 0.42 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Maximum Voltage (kV) | 35 |
| Connector Details | 1 x Terminal |
| Product Material | Copper |
| Connector Plating | Tin |
| Product Name | Terminal Connector |
| Product Class | Wire Termination |
| Package Quantity | 1 |
