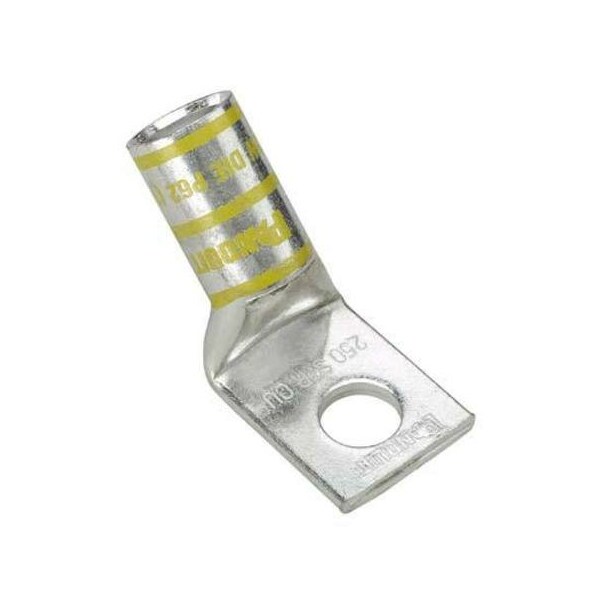

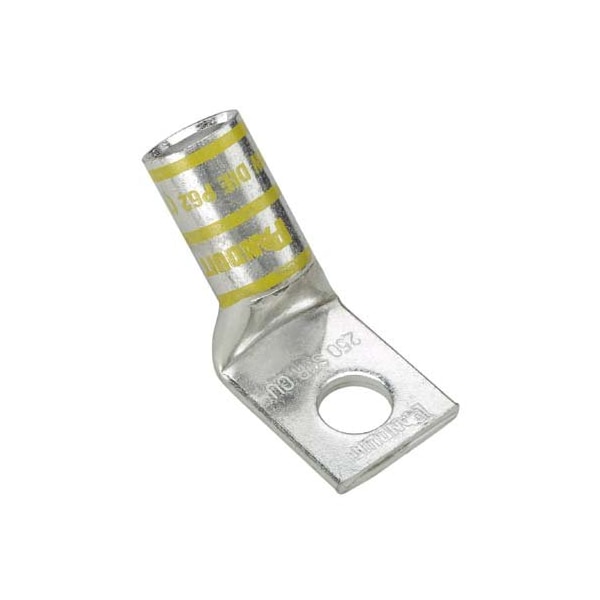

Terminal de compresión de cobre, 1 perforación, calibre 2/0.
| Length | 1.2 in |
|---|---|
| Color Code | Black |
| Overall Length | 1.77 in |
| Features | Corrosion Resistant, 45° Angled Connector |
| Wire Strip Length (mm) | 27 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Wire Strip Length (In.) | 1.06 |
| Tongue Type | Standard |
| Tongue Angle | 45° |
| Tongue Thickness (In.) | 0.13 |
| Panduit Die Index Number | P45 |
| Product Type | Copper Compression Connectors - Lugs |
| Tongue Thickness (mm) | 3.3 |
| Barrel Length (In.) | 0.98 |
| Tongue Width (mm) | 21.6 |
| Burndy Die Index Number | 13 |
| Barrel Length (mm) | 24.9 |
| Stud Hole Size (In.) | 44,930 |
| Tongue Width (In.) | 0.85 |
| Copper Code Conductor Size (AWG) | 36,557 |
| Stud Hole Size (mm) | 6.4 |
| Overall Length (mm) | 45 |
| Overall Length (In.) | 1.77 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Base Material | Copper |
| Connector Plating | Tin |
| Connector Details | 1 x Terminal |
| Product Material | Copper |
| Product Name | Terminal Connector |
| Product Class | Wire Termination |
| Package Quantity | 1 |
