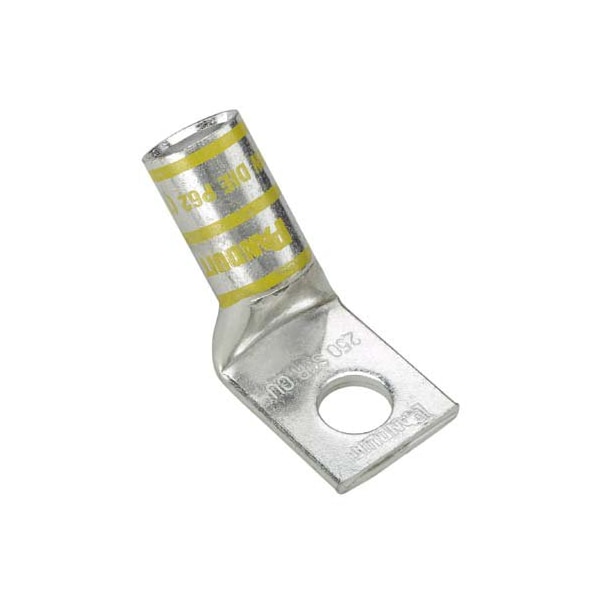

Terminal de compresión de cobre, 1 orificio, 250 Kcmi
| Material | Copper |
|---|---|
| Color Code | Yellow |
| Tongue Width - Wire Connector | 1.17 |
| Hole Center to Center | 44628 |
| Standards | C22.2 No. 65-13, 486A-486B File #E52164 |
| Tongue Style | Standard |
| Barrel Length | 1.25 |
| Tool Type | Tin-Plated Copper Compression Connectors - Lugs |
| Overall Length | 2.13 in |
| Base Material | Copper |
| Panduit Die Index Number | P62 |
| Tongue Thickness (In.) | 0.14 |
| Product Type | Copper Compression Connectors - Lugs |
| Stud Hole Size (mm) | 9.5 |
| Tongue Width (In.) | 1.17 |
| Copper Code Conductor Size (kcmil) | 250 |
| Overall Length (mm) | 54.1 |
| Barrel Length (In.) | 1-1/4 |
| Wire Strip Length (In.) | 1.31 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Tongue Width (mm) | 29.7 |
| Tongue Angle | 45° |
| Wire Strip Length (mm) | 33.3 |
| Barrel Length (mm) | 31.8 |
| Burndy Die Index Number | 16 |
| Tongue Thickness (mm) | 3.6 |
| Tongue Type | Standard |
| Stud Hole Size (In.) | 44,993 |
| Overall Length (In.) | 2.13 |
| Maximum Voltage (kV) | 35 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Product Class | Wire Termination |
| Package Quantity | 1 |
