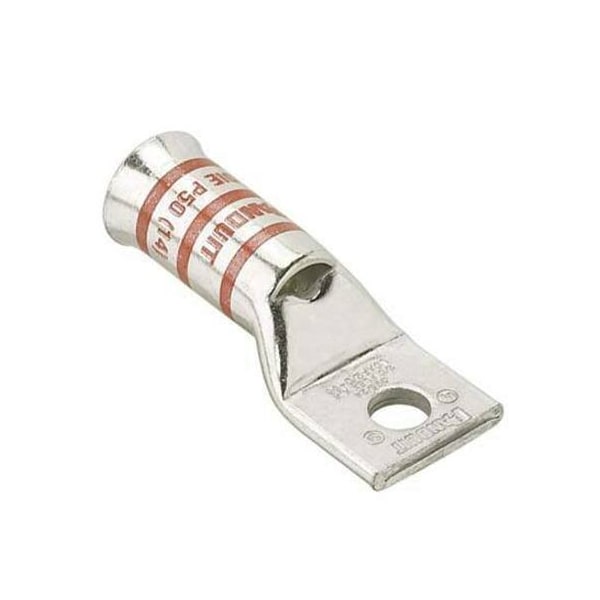

Terminal de compresión de cobre, 1 orificio, 250 kcmil.
| Length | 5.4 in |
|---|---|
| Color Code | White |
| Overall Length | 3.3 in |
| Features | Angled Connector, Corrosion Resistant |
| Class K Copper Flex Conductor Size (kcmil) | 250 |
| Panduit Die Index Number | P66 |
| Finish/Coating | Tin-Plated |
| Base Material | Copper |
| Tongue Width (In.) | 1.28 |
| Barrel Length (mm) | 42 |
| Tongue Width (mm) | 32.5 |
| UL Temperature Rating (°C) | 90 |
| Standards Met | UL Listed and CSA Certified, NEBS Level 3, ABS |
| Wire Strip Length (In.) | 1.75 |
| Tongue Thickness (mm) | 4.3 |
| Stud Hole Size (In.) | 1 to 2 |
| Overall Length (In.) | 3.3 |
| Tongue Type | Standard |
| Wire Strip Length (mm) | 44.5 |
| Maximum Voltage (kV) | 35 |
| Barrel Length (In.) | 1.65 |
| Class M Copper Flex Conductor Size (kcmil) | 250 |
| Barrel Type | Standard Barrel |
| DLO Copper Flex Conductor Size (kcmil) | 262.6 |
| Tongue Thickness (In.) | 0.17 |
| Tongue Angle | Straight |
| Overall Length (mm) | 83.8 |
| Product Type | Copper Compression Connectors - Lugs |
| Stud Hole Size (mm) | 12.7 |
| Product Name | Terminal Connector |
| Product Material | Copper |
| Connector Details | 1 x Terminal |
| Connector Plating | Tin |
| Product Class | Lugs, Splices, Accessories, Split Bolts |
| Package Quantity | 1 |
