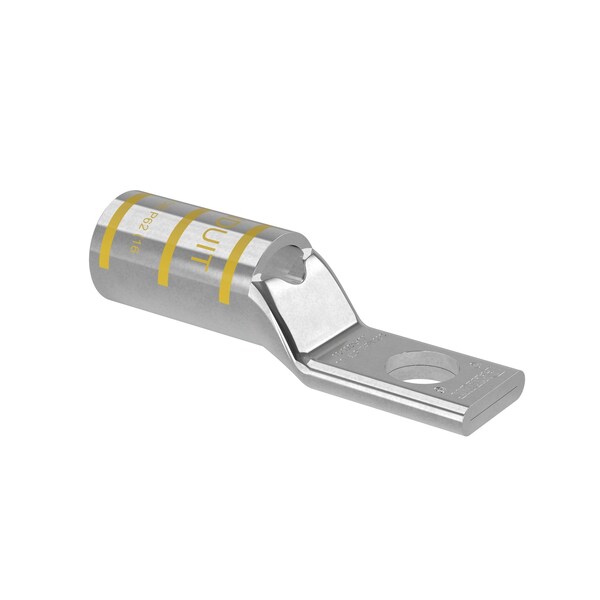

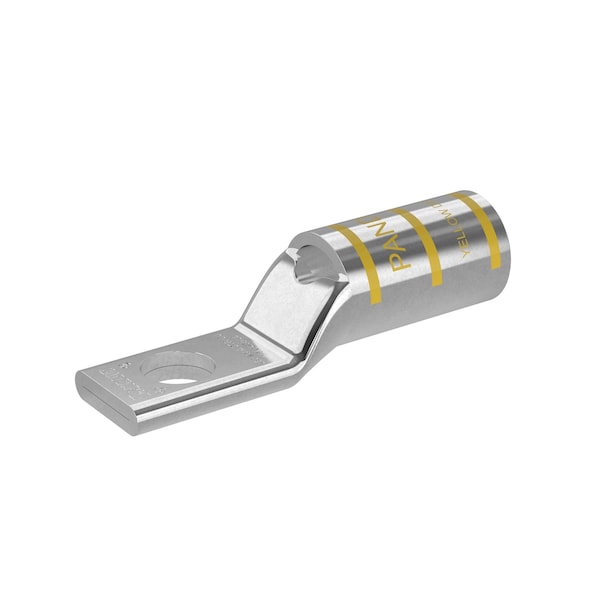

Copper Compression Lug, 1 Hole, 250 kcmi
| Length | 3.3 in |
|---|---|
| Color Code | Yellow |
| Overall Length | 2.55 in |
| Features | Angled Connector, Corrosion Resistant |
| Lug Type | 1 Stud Hole Lug |
| Stud Hole Size (mm) | 9.5 |
| Maximum Voltage (kV) | 35 |
| Overall Length (mm) | 64.7 |
| Finish/Coating | Tin-Plated |
| Outer Diameter (mm) | 19.55 |
| Inside Diameter (mm) | 16 |
| Barrel Length (In.) | 1-1/4 |
| Tongue Width (In.) | 0.77 |
| Stud Hole Size (In.) | 44,993 |
| Product Type | Copper Compression Connectors - Lugs |
| Barrel Length (mm) | 31.8 |
| Copper Code Conductor Size (kcmil) | 250 |
| Panduit Die Index Number | P62 |
| Burndy Die Index Number | 16 |
| Base Material | Copper |
| Wire Strip Length (mm) | 33.3 |
| Barrel Type | Standard Barrel, Barrel with Inspection Window |
| Tongue Thickness (mm) | 3.8 |
| Outer Diameter (In.) | 0.77 |
| UL Temperature Rating (°C) | 90 |
| Tongue Thickness (In.) | 0.15 |
| Tongue Width (mm) | 19.6 |
| Tongue Angle | Straight |
| Inside Diameter (In.) | 0.63 |
| T & B Die Index Number | 16 |
| Overall Length (In.) | 2.55 |
| Tongue Type | Narrow |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52165 |
| Wire Strip Length (In.) | 42,374 |
| Product Name | Terminal Connector |
| Connector Details | 1 x Terminal |
| Connector Plating | Tin |
| Product Material | Copper |
| Product Class | Lugs, Splices, Accessories, Split Bolts |
| Package Quantity | 1 |
