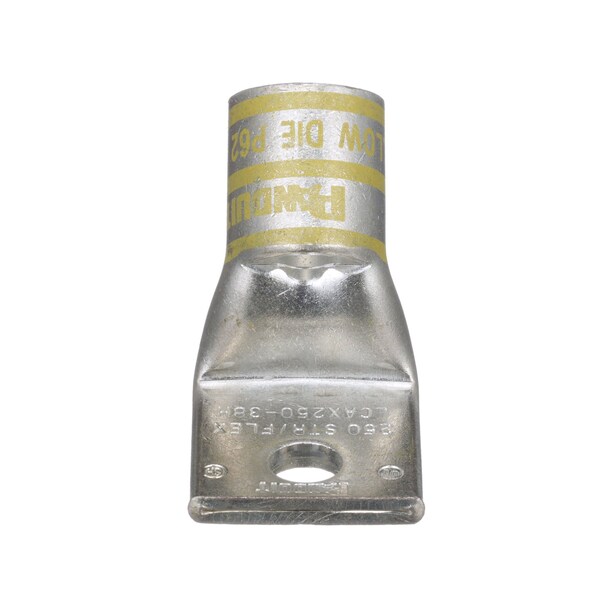

Terminal de compresión de cobre, con un agujero, 250 Kcmil.
| Material | Copper |
|---|---|
| Color Code | Yellow |
| Overall Length | 2.3 in |
| Tongue Style | Standard |
| Hole Center to Center | 44628 |
| Barrel Length | 1.03 |
| Tool Type | Tin-Plated Copper Compression Connectors - Lugs |
| Tongue Width - Wire Connector | 1.28 |
| Tongue Angle | 45° |
| Copper Code Conductor Size (kcmil) | 250 |
| Tongue Width (In.) | 1.28 |
| Stud Hole Size (mm) | 9.5 |
| Overall Length (In.) | 2.3 |
| Barrel Length (In.) | 1.03 |
| Stud Hole Size (In.) | 44,993 |
| Tongue Thickness (In.) | 0.17 |
| UL Temperature Rating (°C) | 90 |
| Base Material | Copper |
| Maximum Voltage (kV) | 35 |
| Tongue Type | Standard |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Wire Strip Length (mm) | 27 |
| Tongue Width (mm) | 32.5 |
| Product Type | Copper Compression Connectors - Lugs |
| Barrel Length (mm) | 26.2 |
| Burndy Die Index Number | 16 |
| Finish/Coating | Tin-Plated |
| Panduit Die Index Number | P62 |
| Overall Length (mm) | 58.4 |
| Tongue Thickness (mm) | 4.3 |
| Product Class | Wire Termination |
| Package Quantity | 1 |
