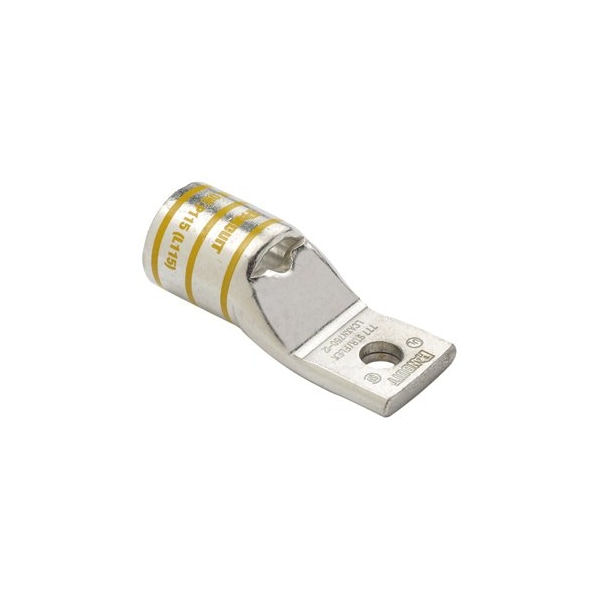

Terminal de compresión de cobre, 1 perforación, 250 kcmil.
| Overall Length | 3.12 in |
|---|---|
| Features | Angled Connector |
| Tongue Thickness (mm) | 5.3 |
| Stud Hole Size (mm) | 12.7 |
| Tongue Width (In.) | 0.88 |
| Barrel Length (In.) | 1.44 |
| Tongue Width (mm) | 22.3 |
| Tongue Angle | Straight |
| Wire Strip Length (In.) | 1.5 |
| Overall Length (mm) | 79.2 |
| Tongue Thickness (In.) | 0.21 |
| Stud Hole Size (In.) | 1 to 2 |
| Wire Strip Length (mm) | 38.1 |
| Overall Length (In.) | 3.12 |
| Barrel Length (mm) | 36.5 |
| Product Type | Copper Compression Connectors - Lugs |
| Product Material | Copper |
| Connector Plating | Tin |
| Product Name | Terminal Connector |
| Connector Details | 1 x Barrel Plug |
| Product Class | Wire Termination |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Package Quantity | 1 |
