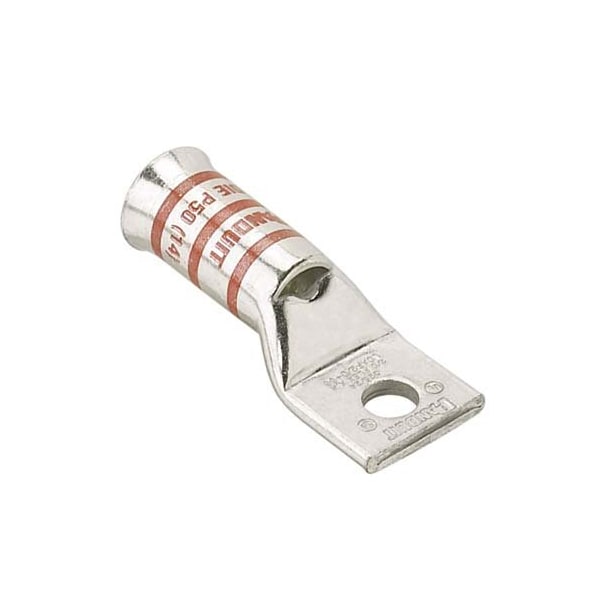

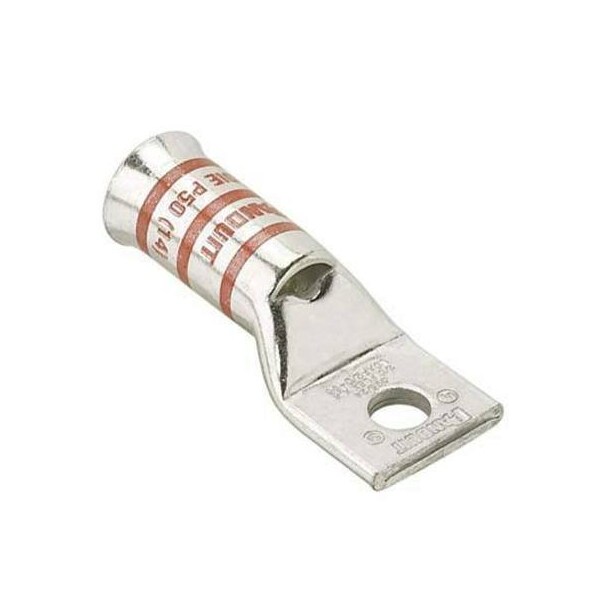

Terminal de compresión de cobre, 1 agujero, calibre 3/0 AWG, barril ahusado, LCAF3/0-38-X
| Length | 1.6 in |
|---|---|
| Color Code | Purple |
| Overall Length | 2.6 in |
| Features | Angled Connector, Corrosion Resistant |
| UL Temperature Rating (°C) | 90 |
| DLO Copper Flex Conductor Size (AWG) | 36,586 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Panduit Die Index Number | P54 |
| Overall Length (mm) | 66 |
| Overall Length (In.) | 2.6 |
| Tongue Width (mm) | 26.9 |
| Finish/Coating | Tin-Plated |
| Product Type | Copper Compression Connectors - Lugs |
| Class M Copper Flex Conductor Size (AWG) | 36,586 |
| Wire Strip Length (mm) | 36.5 |
| Maximum Voltage (kV) | 35 |
| Stud Hole Size (In.) | 44,993 |
| Barrel Length (In.) | 1.35 |
| Base Material | Copper |
| Class K Copper Flex Conductor Size (AWG) | 36,586 |
| Tongue Width (In.) | 1.06 |
| Stud Hole Size (mm) | 9.5 |
| Tongue Thickness (In.) | 0.14 |
| Tongue Thickness (mm) | 3.6 |
| Tongue Angle | Straight |
| Barrel Length (mm) | 34.3 |
| Tongue Type | Standard |
| Product Material | Copper |
| Connector Details | 1 x Terminal |
| Product Name | Terminal Connector |
| Connector Plating | Tin |
| Product Class | Lugs, Splices, Mechanical |
| Package Quantity | 1 |
