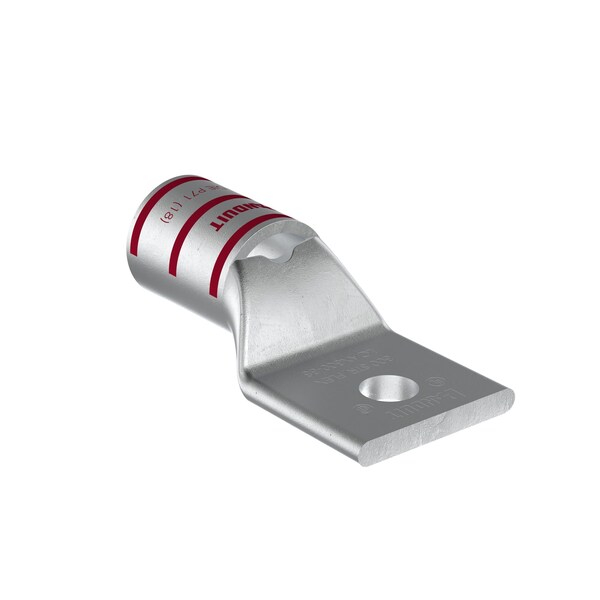

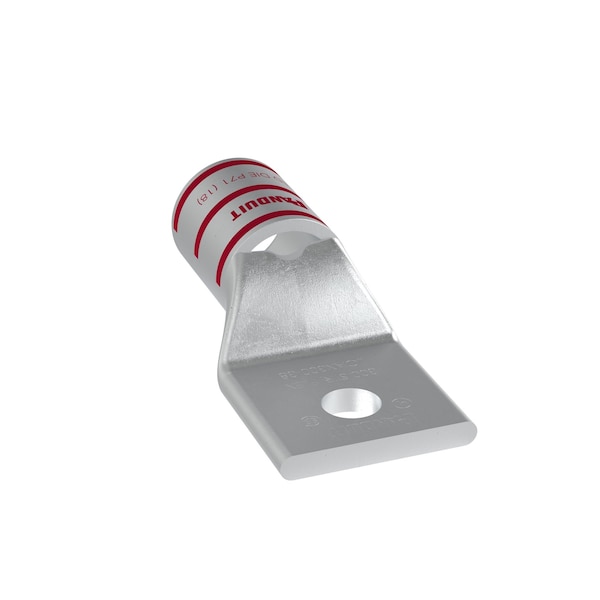

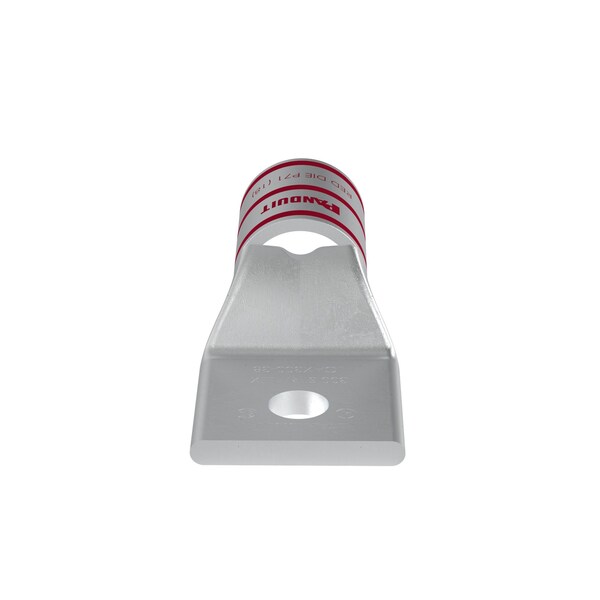

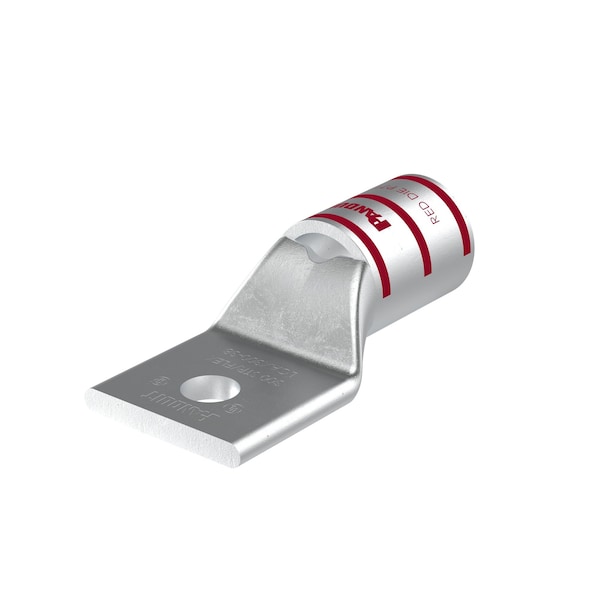

Terminal de compresión de cobre, 1 hoyo, 300 kcmil.
| Length | 2.8 in |
|---|---|
| Color Code | Red |
| Overall Length | 2.91 in |
| Features | Corrosion Resistant, Angled Connector |
| Class G Copper Flex Conductor Size (kcmil) | 300 |
| Wire Strip Length (In.) | 37,987 |
| Panduit Die Index Number | P71 |
| Tongue Width (In.) | 1.39 |
| Tongue Thickness (mm) | 4.6 |
| Class M Copper Flex Conductor Size (kcmil) | 300 |
| Maximum Voltage (kV) | 35 |
| Lug Type | 1 Stud Hole Lug |
| Stud Hole Size (mm) | 9.5 |
| Tongue Type | Standard |
| UL Temperature Rating (°C) | 90 |
| Wire Strip Length (mm) | 31.8 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Class I Copper Flex Conductor Size (kcmil) | 300 |
| Finish/Coating | Tin-Plated |
| DLO Copper Flex Conductor Size (kcmil) | 313.1 |
| Class K Copper Flex Conductor Size (kcmil) | 300 |
| Base Material | Copper |
| Stud Hole Size (In.) | 44,993 |
| Overall Length (mm) | 73.9 |
| Outer Diameter (mm) | 24.13 |
| Barrel Type | Standard Barrel, Barrel with Inspection Window |
| Inside Diameter (In.) | 0.76 |
| Burndy Die Index Number | 18 |
| Overall Length (In.) | 2.91 |
| Tongue Width (mm) | 35.3 |
| T & B Die Index Number | 18 |
| Barrel Length (mm) | 30.2 |
| Product Type | Copper Compression Connectors - Lugs |
| Tongue Thickness (In.) | 0.18 |
| Outer Diameter (In.) | 0.95 |
| Tongue Angle | Straight |
| Class H Copper Flex Conductor Size (kcmil) | 300 |
| Inside Diameter (mm) | 19.3 |
| Barrel Length (In.) | 1.19 |
| Connector Plating | Tin |
| Product Name | Terminal Connector |
| Product Material | Copper |
| Connector Details | 1 x Terminal |
| Product Class | Wire Termination |
| Package Quantity | 1 |
